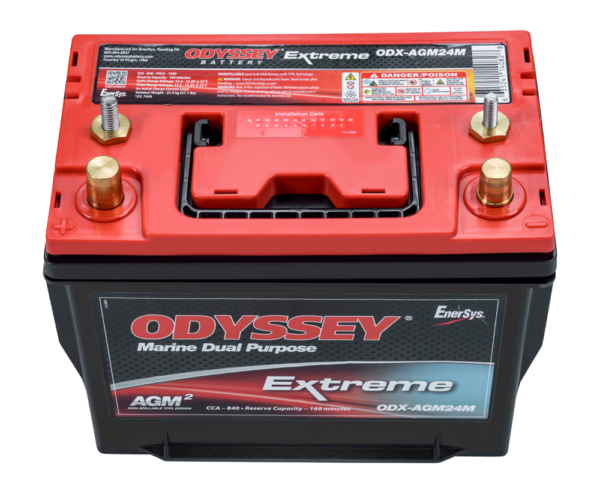

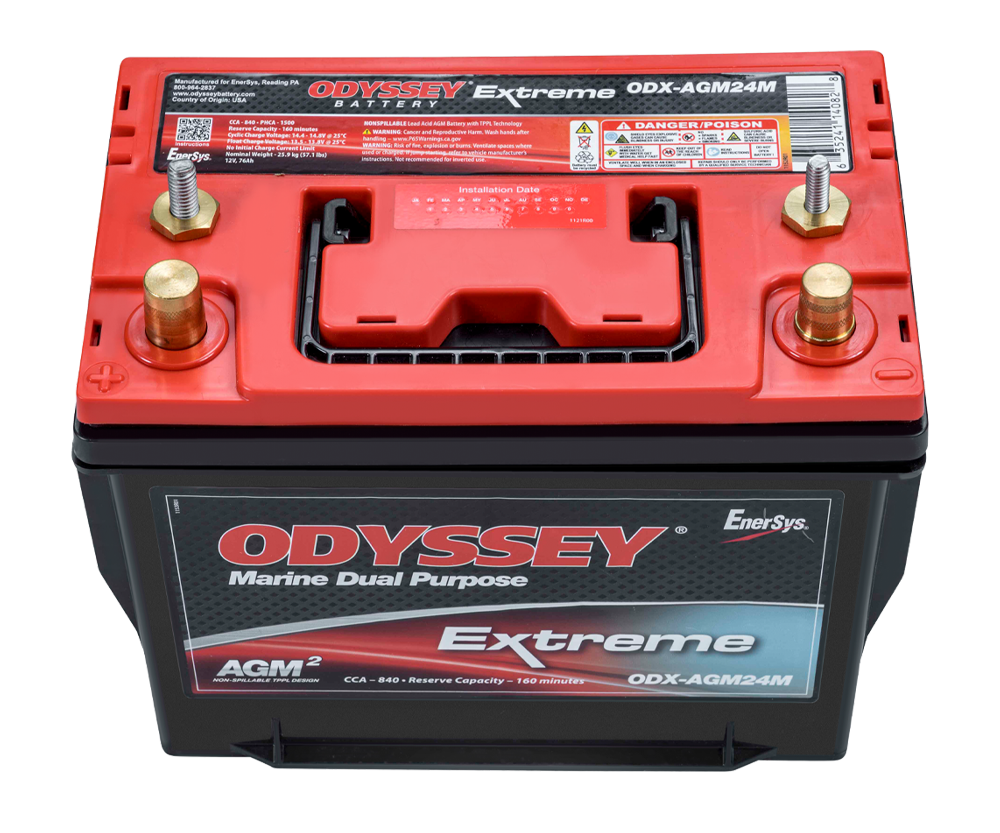

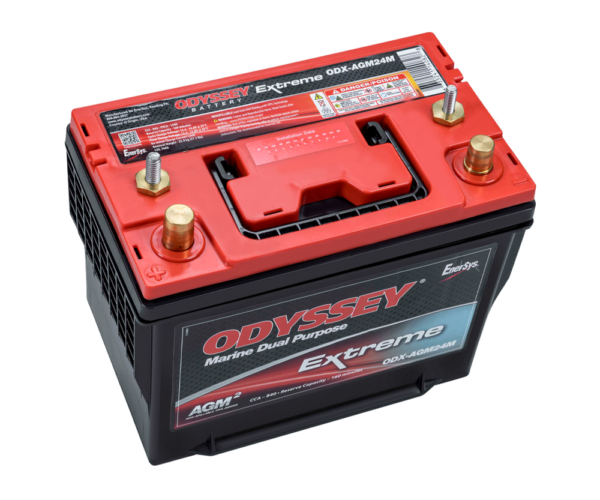

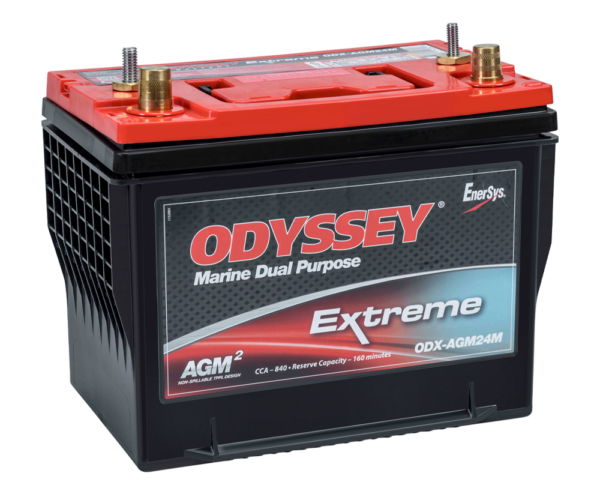

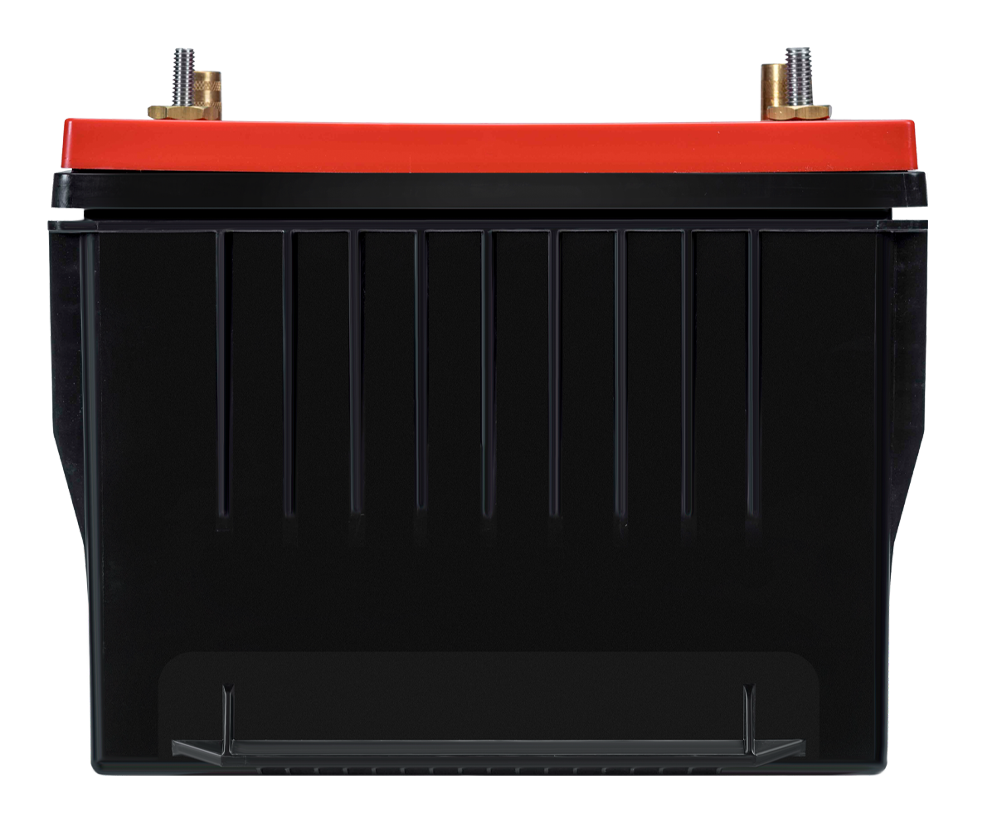

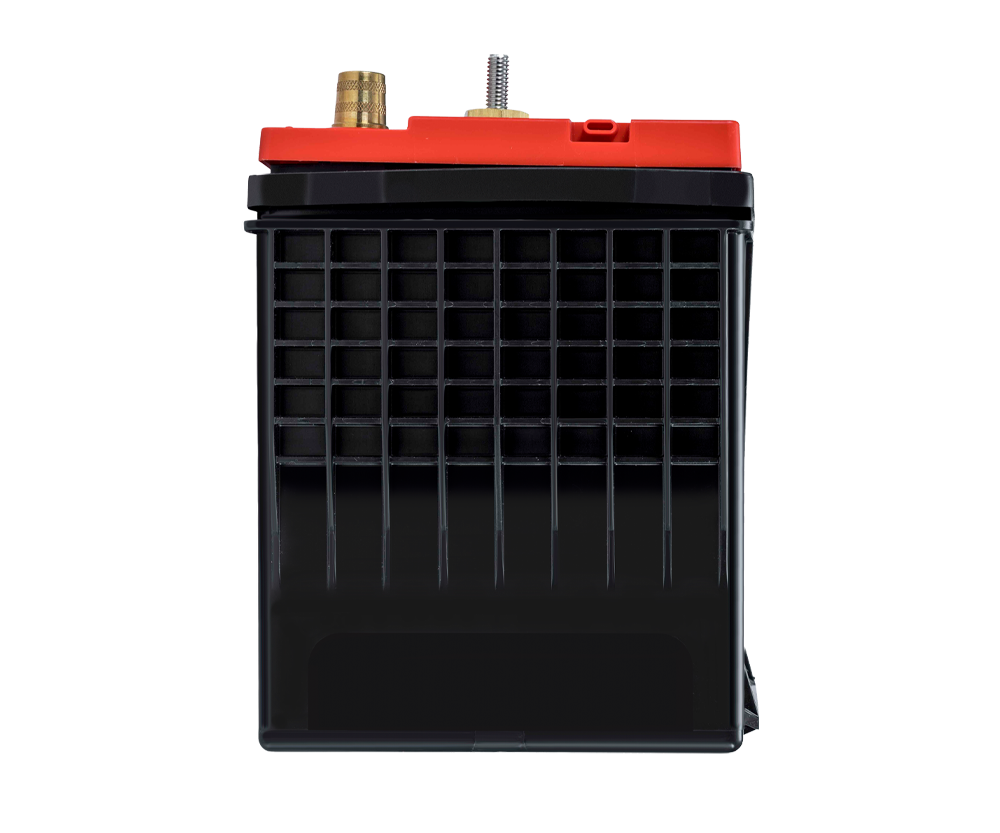

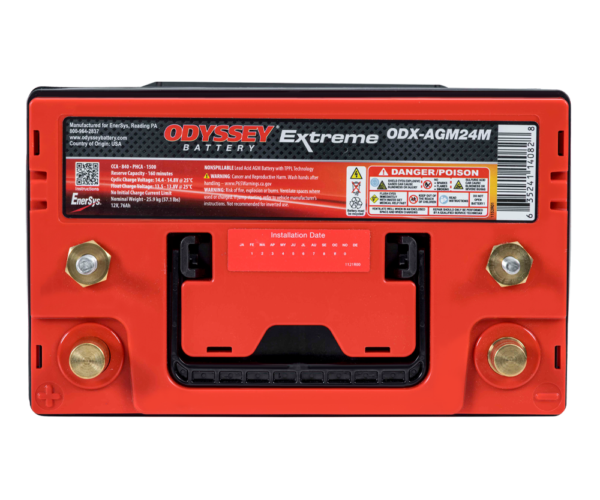

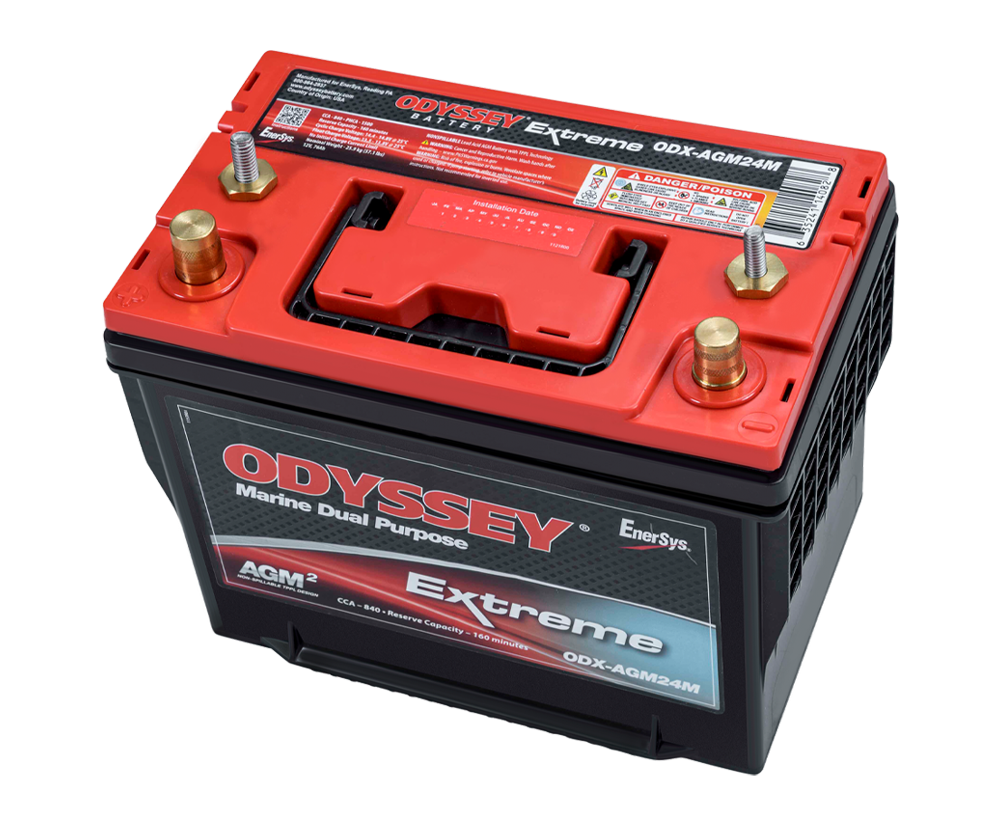

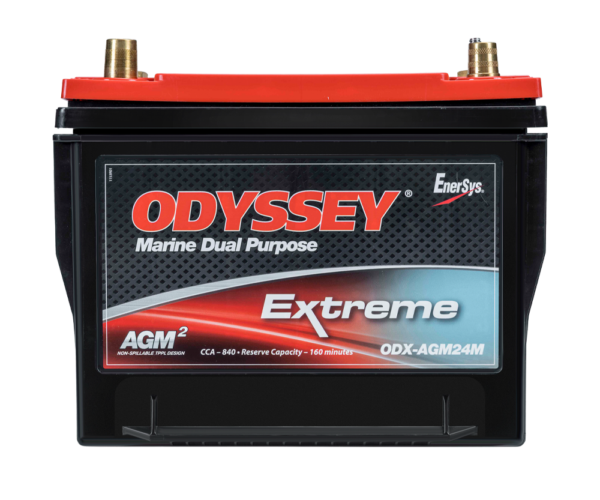

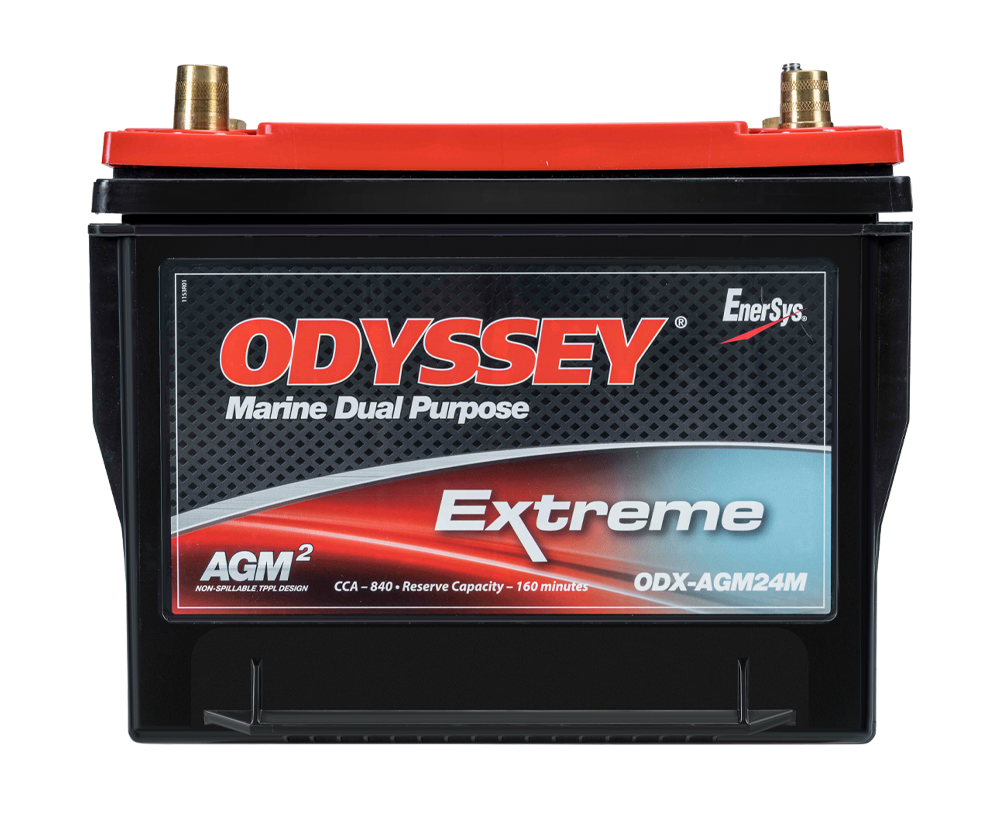

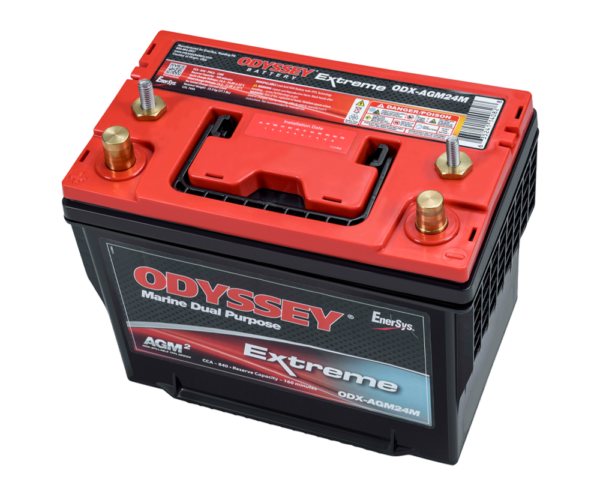

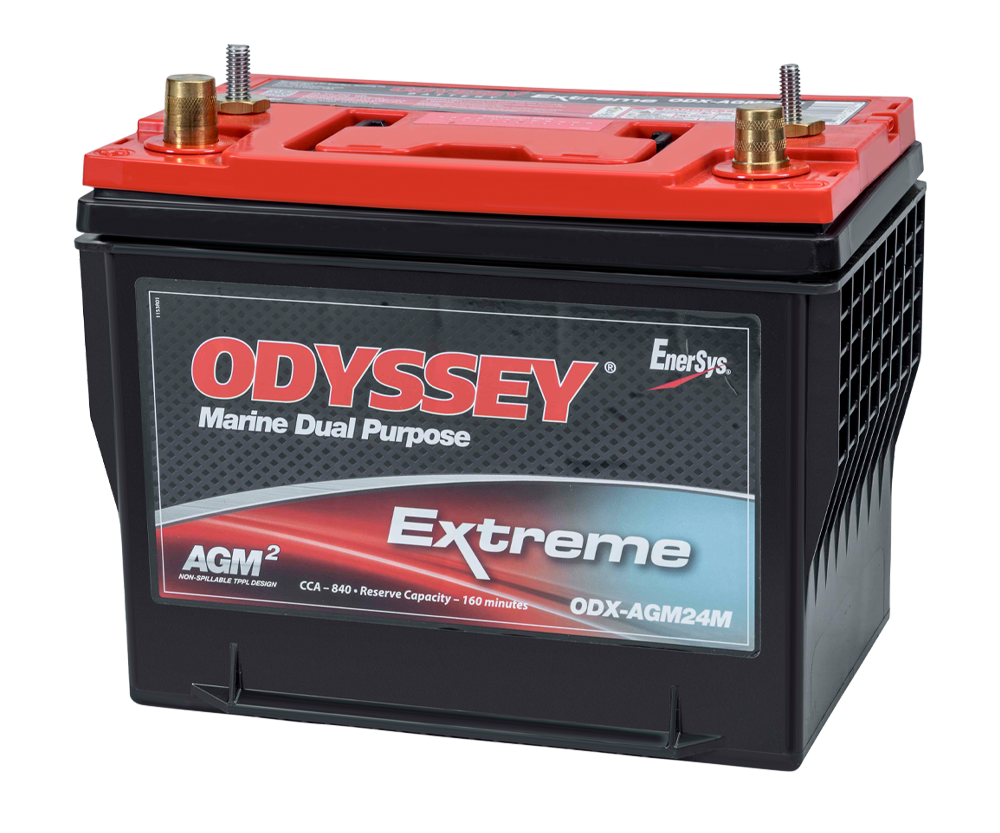

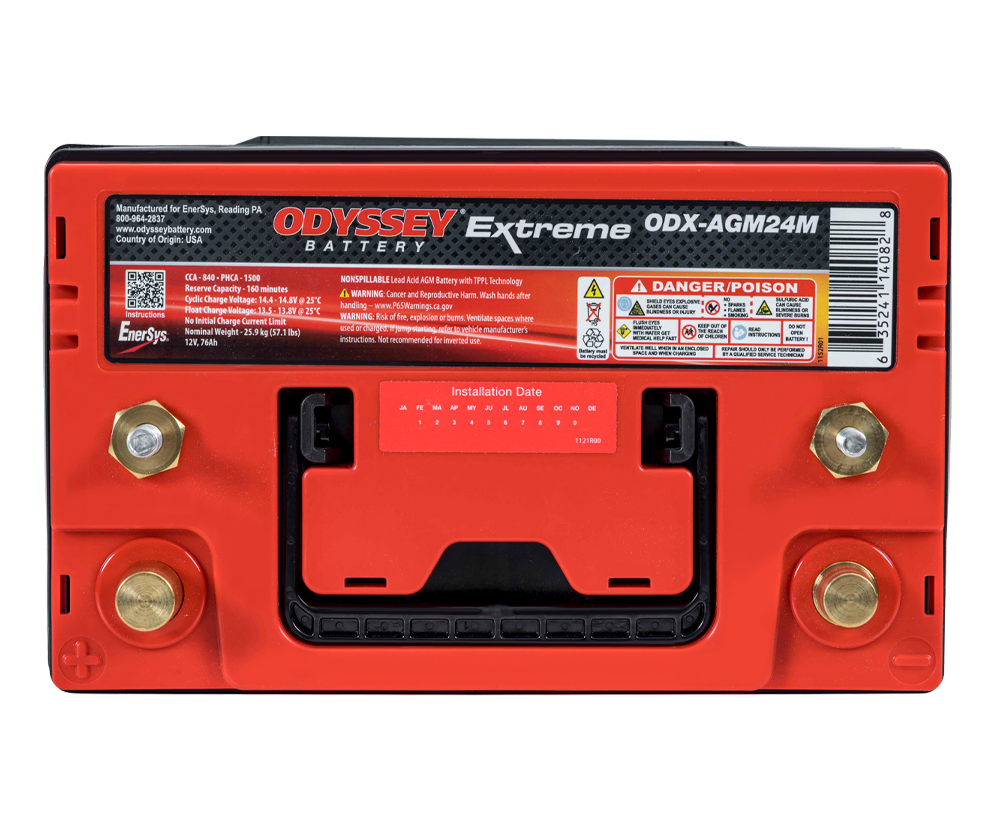

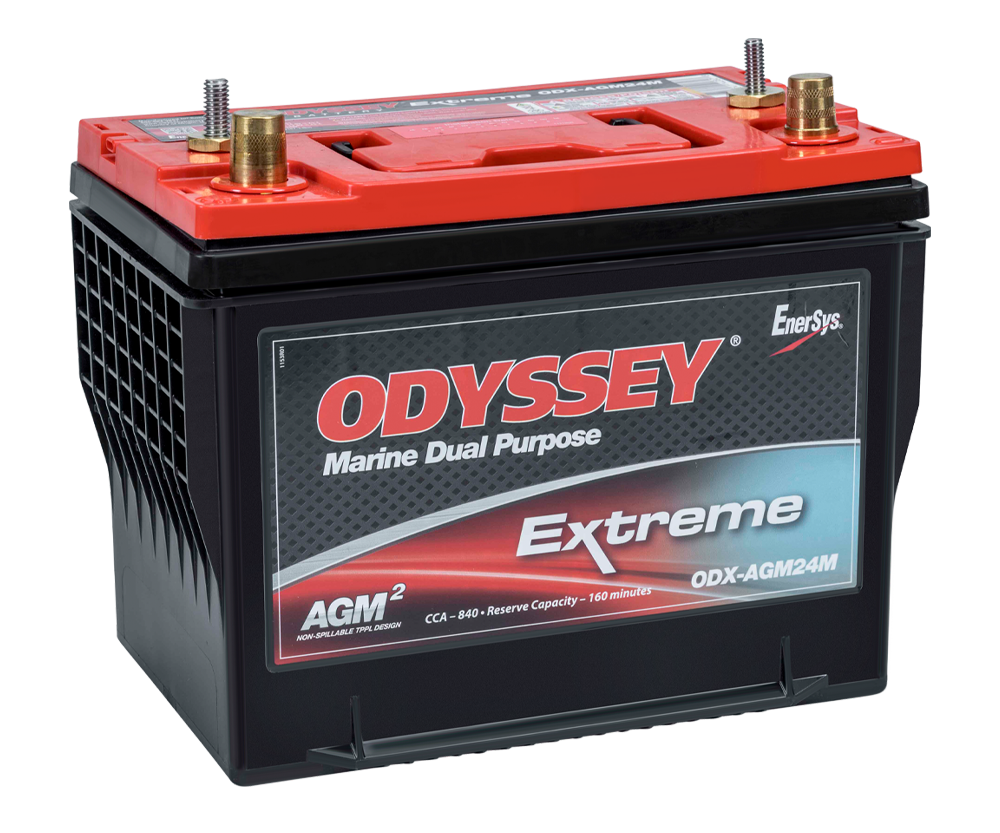

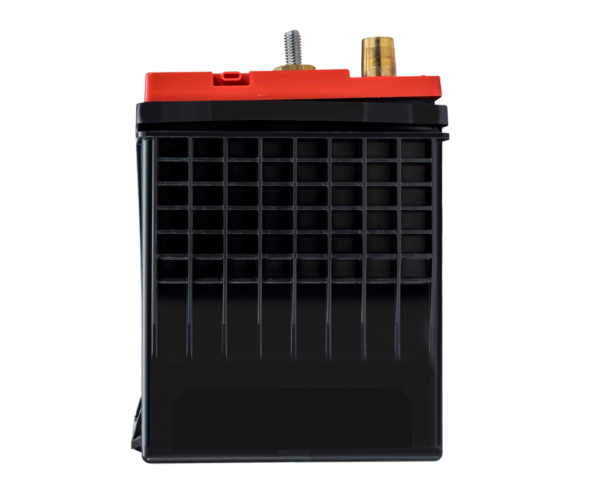

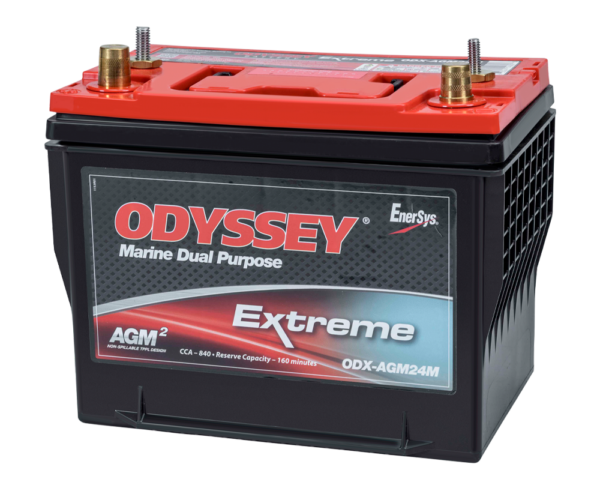

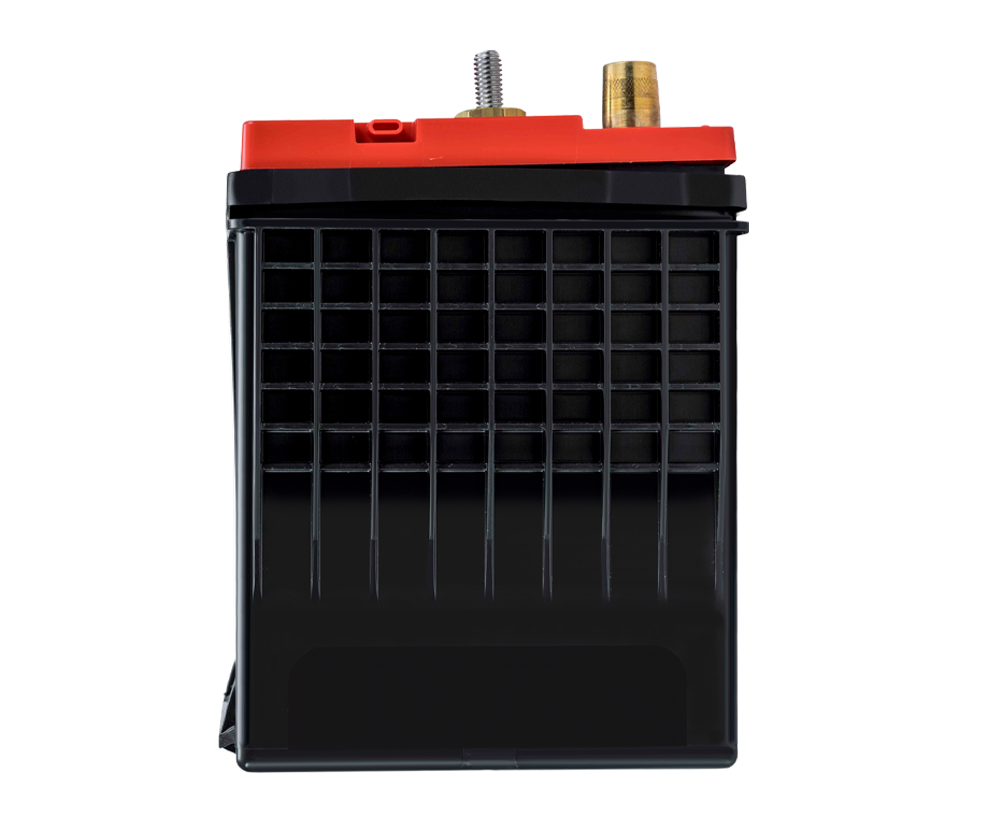

ODYSSEY Extreme Battery

ODX-AGM24M

(NSB-AGM24M)

NorthStar marine batteries excel at providing high vibration resistance, with the high cranking amps and reserve capacity that watercraft demand.

Pure lead AGM technology delivers exceptional CCA ratings and reserve capacity cycling ability
Quick starting every time
Cycles over 900 times at 50% depth of discharge
Faster recharge than conventional batteries
Proudly made in the USA at our state-of-the-art battery plant
OEM fit is ensured – built to exact BCI standards
Housed in advanced plastics for durability performance and heat resistance
Advanced AGM construction means no water levels to check or terminals to clean
Approved as non-hazardous cargo for ground sea and air transport DOT 49CFR173.159(d), (i) and (ii)

SAE Metric

Voltage

Pulse (5 second) Hot Cranking Amps (PHCA)

1500

MHPCA

1400

MPCA

1225

Cold Cranking Amps (CCA)

840

HCA

1200

MCA

1000

20Hr Nominal Capacity (Ah)

10Hr Nominal Capacity (Ah)

Reserve Capacity Minutes

160

Terminal

SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.)

Torque Spec in-lbs (Nm max)

200 (22.6)/100 (11.3) studs only

Internal Resistance (mΩ)

Short Circuit (A)

3100

Recommended Min. Charging Current (A)

7.3

Operating Temperature Range

-40°F / -40°C to 176°F / +80°C

Optimum Storage Temperature

68°F / +20°C

UPC	635241140828
