ODYSSEY® Performance (ODP) Automotive Batteries
Designed and engineered specifically for automotive type applications and footprints, ODYSSEY® Performance (ODP) batteries will easily handle the increasing demands of start-stop and onboard accessories, supplying twice the power and three-times the life of conventional batteries.
| NEW PART NUMBER (Old Part Number) |
Voltage | PHCA** 5 sec. [A] |
MHPCA* [A] |
MPCA* [A] |
CCA* [A] |
HCA* [A] |
MCA* [A] |
20 HR Rate [Ah] |
10 HR Rate [Ah] |
Reserve Capacity [Minutes] |
Maximum Length [in (mm)] |
Maximum Width [in (mm)] |
Maximum Total Height [in (mm)] |
Maximum Container Height [in (mm)] |
Weight [lb (kg)] |
Terminal | Maximum Torque [in-lb (Nm)] |
Internal Resistance [mΩ] |
Terminal Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

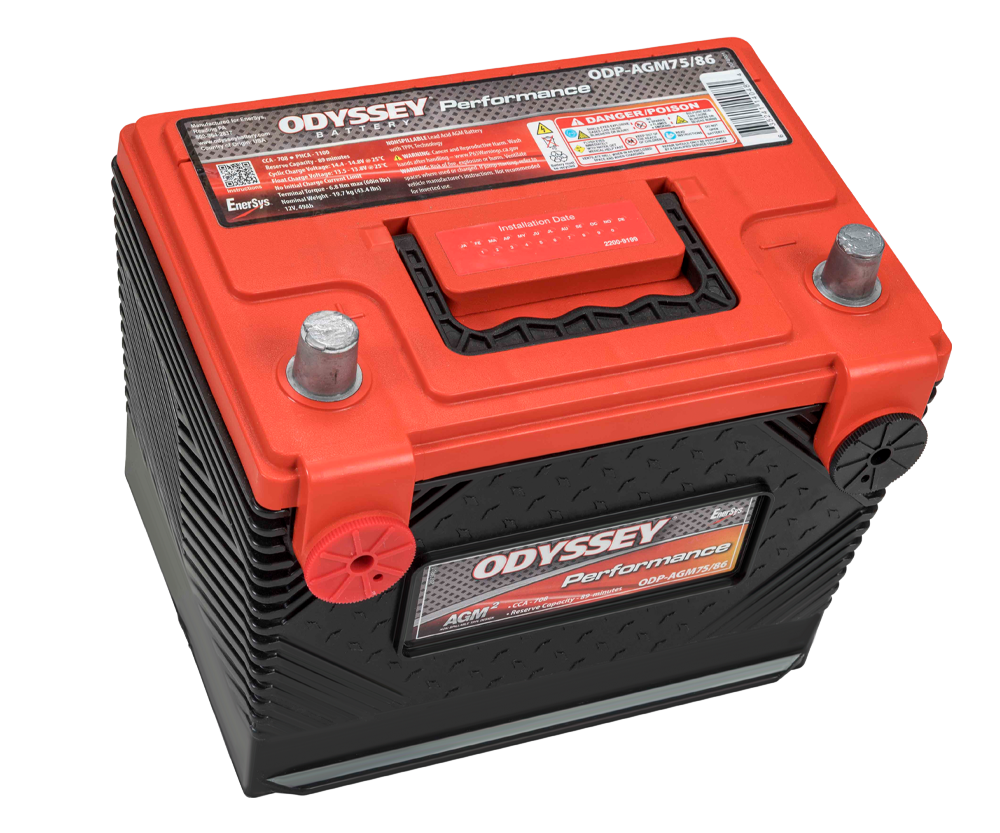

 ODP-AGM75 86 (75/86-705) |
12 | 1100 | 708 | 875 | 760 | 49 | 45 | 89 | 9.5 (241) |
6.8 (173) |
7.9 (201) |
7.4 (188) |
43.4 (19.7) |
SAE & Side | 60 (6.8) side only | 2.8 | View | ||

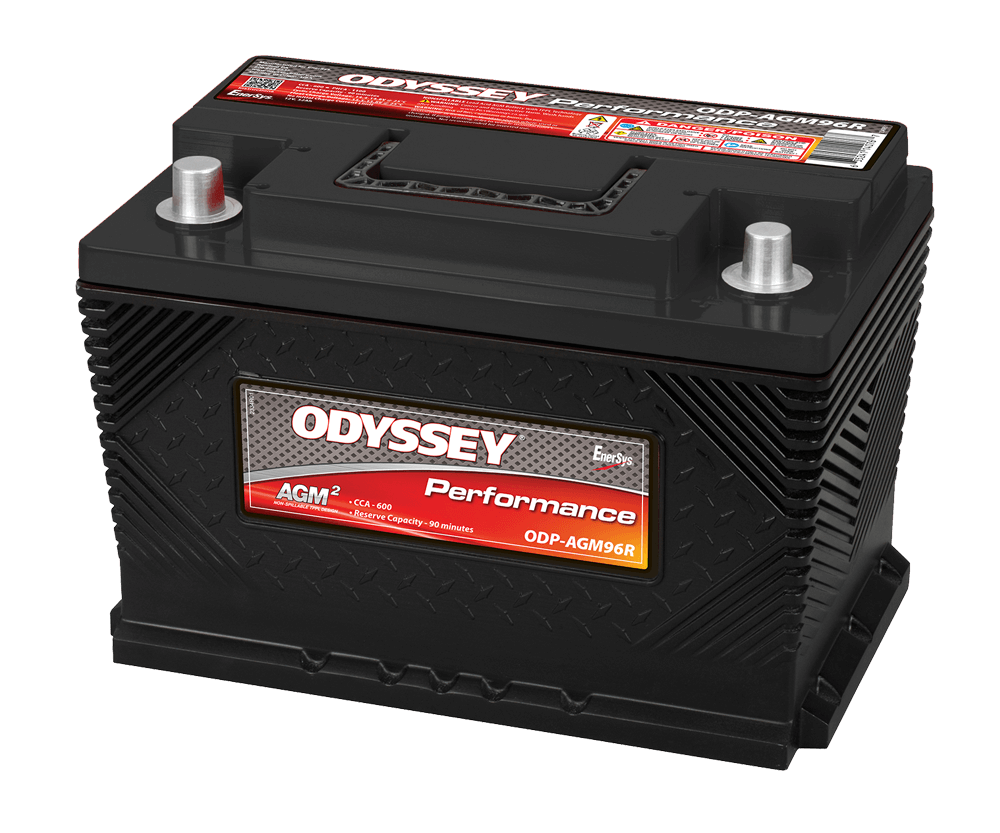

 ODP-AGM96R (96R-600) |
12 | 1100 | 600 | 800 | 700 | 52 | 48 | 90 | 9.5 (241) |
6.9 (175) |
6.8 (173) |
6.9 (175) |
40.3 (18.3) |
SAE | N/A | 2.8 | View | ||

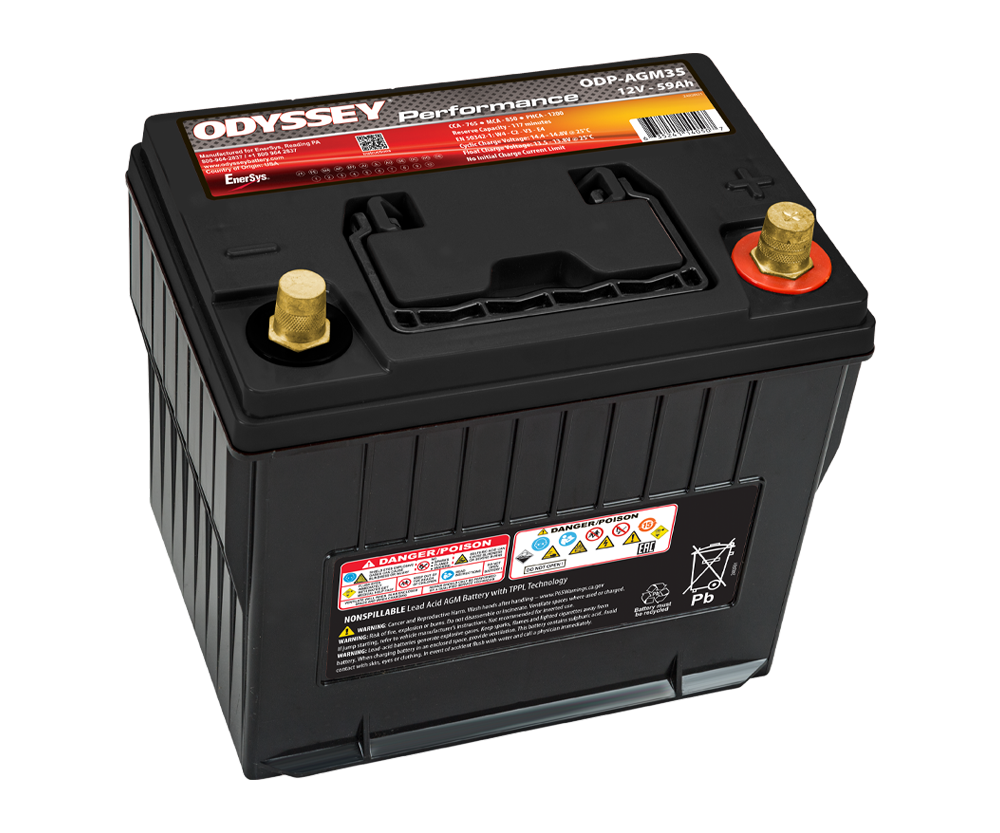

 ODP-AGM35 (35-PC1400) |
12 | 1200 | 765 | 900 | 850 | 59 | 55 | 117 | 9.5 (241) |
6.9 (175) |
8.8 (224) |
8.1 (206) |
50.0 (22.7) |
SAE | N/A | 4.3 | View | ||

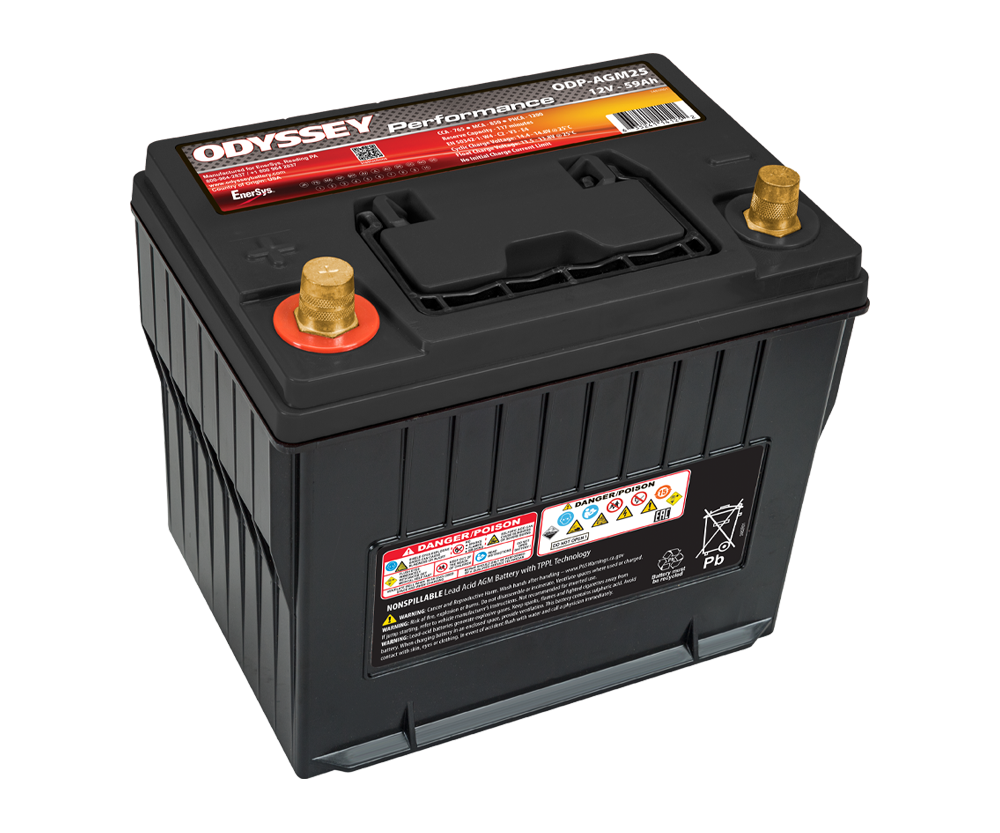

 ODP-AGM25 (25-PC1400) |
12 | 1200 | 765 | 900 | 850 | 59 | 55 | 117 | 9.5 (241) |
6.9 (175) |
8.8 (224) |
8.1 (206) |
50.0 (22.7) |
SAE | N/A | 4.3 | View | ||

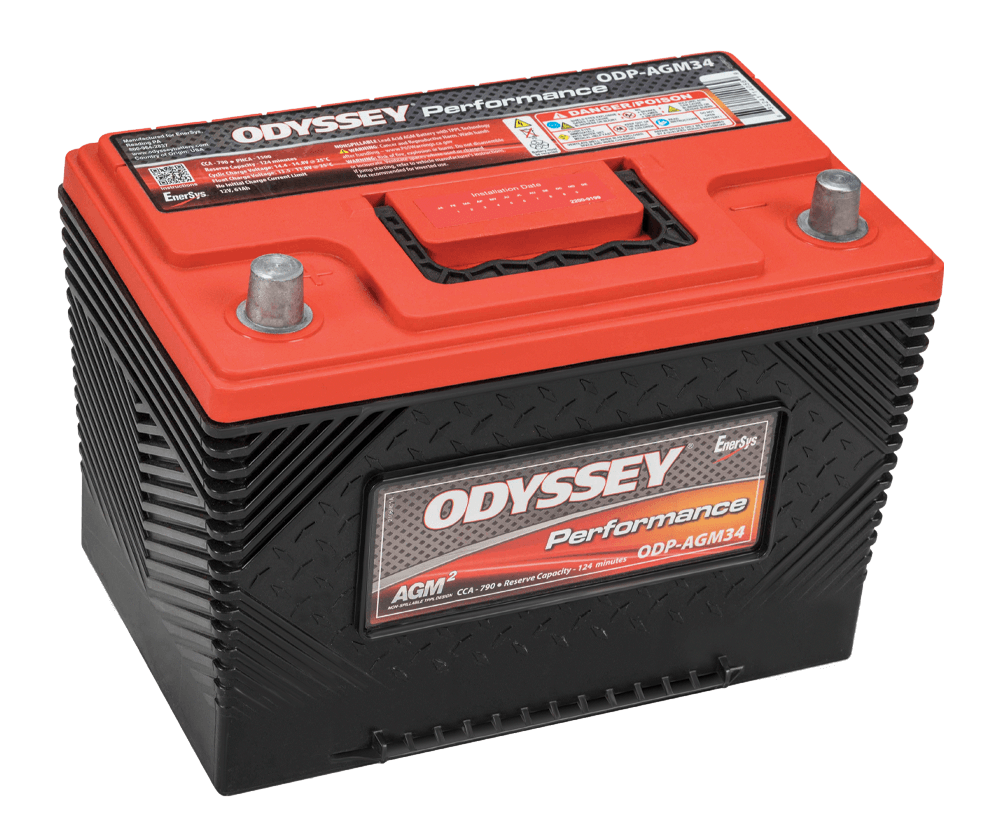

 ODP-AGM34 (34-790) |
12 | 1500 | 800 | 1200 | 1000 | 65 | 57 | 130 | 10.8 (274) |
6.8 (173) |
7.9 (201) |
7.4 (188) |
46.6 (21.1) |
SAE | N/A | 2.9 | View | ||

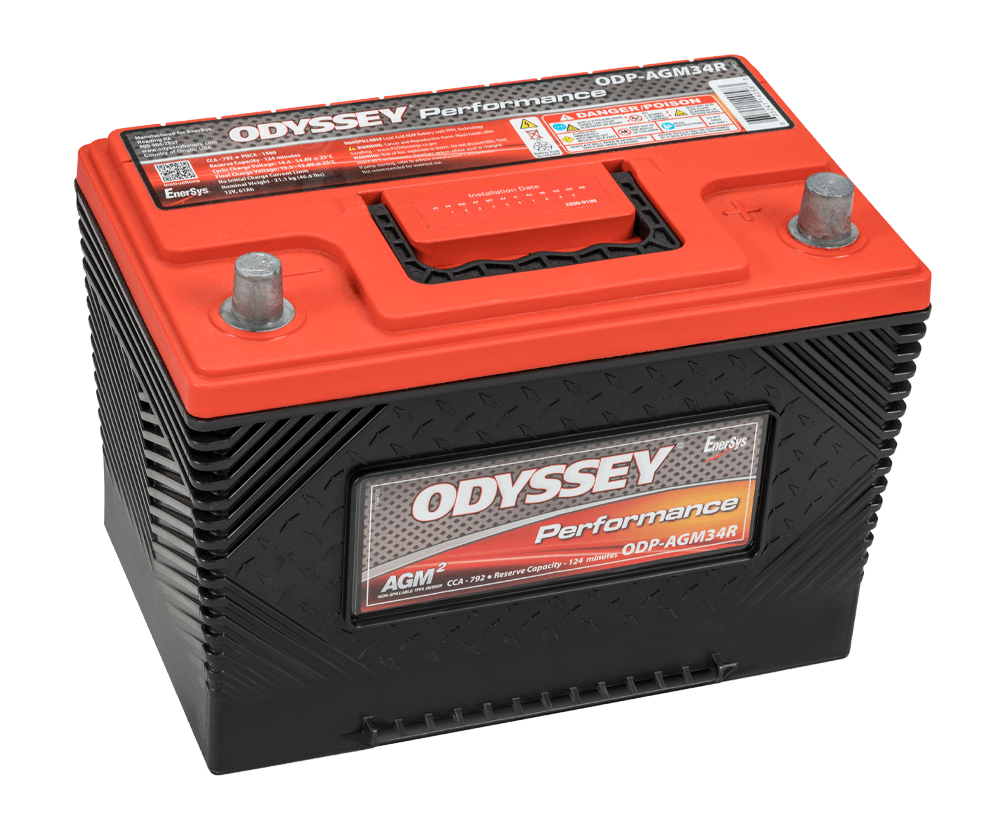

 ODP-AGM34R (34R-790) |
12 | 1500 | 800 | 1200 | 1000 | 65 | 57 | 130 | 10.8 (274) |
6.8 (173) |
7.9 (201) |
7.4 (188) |
46.6 (21.1) |
SAE | N/A | 2.9 | View | ||

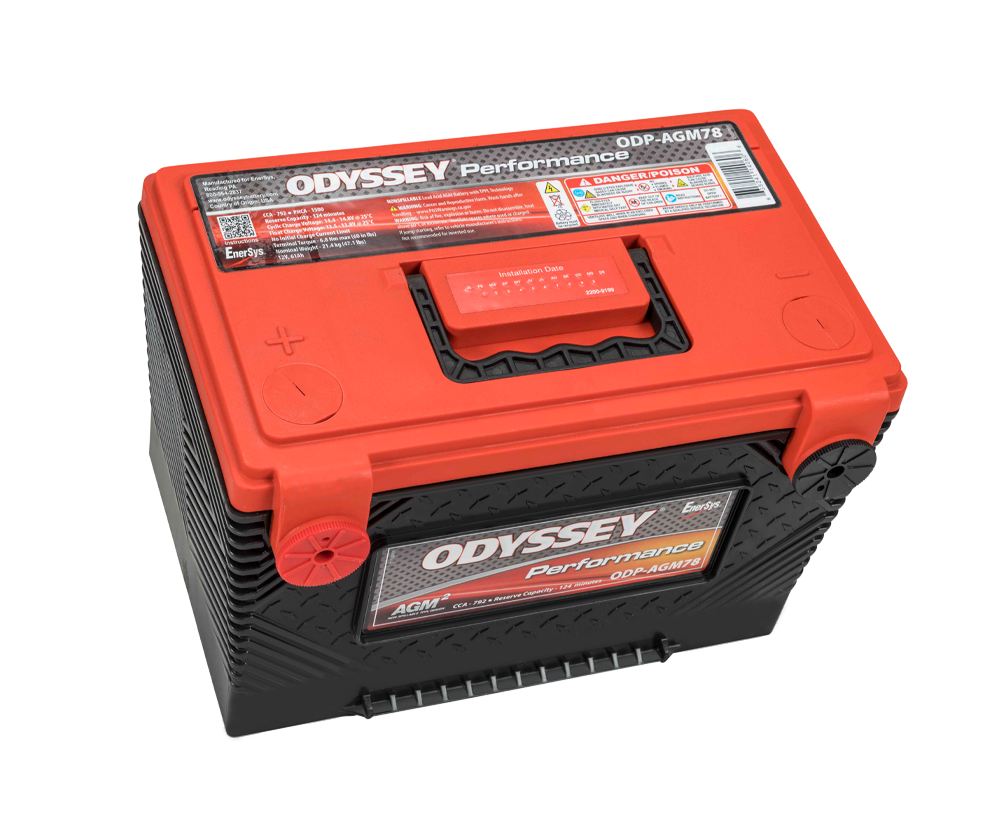

 ODP-AGM78 (78-790) |
12 | 1500 | 800 | 1200 | 1000 | 65 | 57 | 130 | 10.8 (274) |
6.8 (173) |
7.4 (188) |
7.4 (188) |
47.1 (21.4) |
Side | 60 (6.8) | 2.9 | View | ||

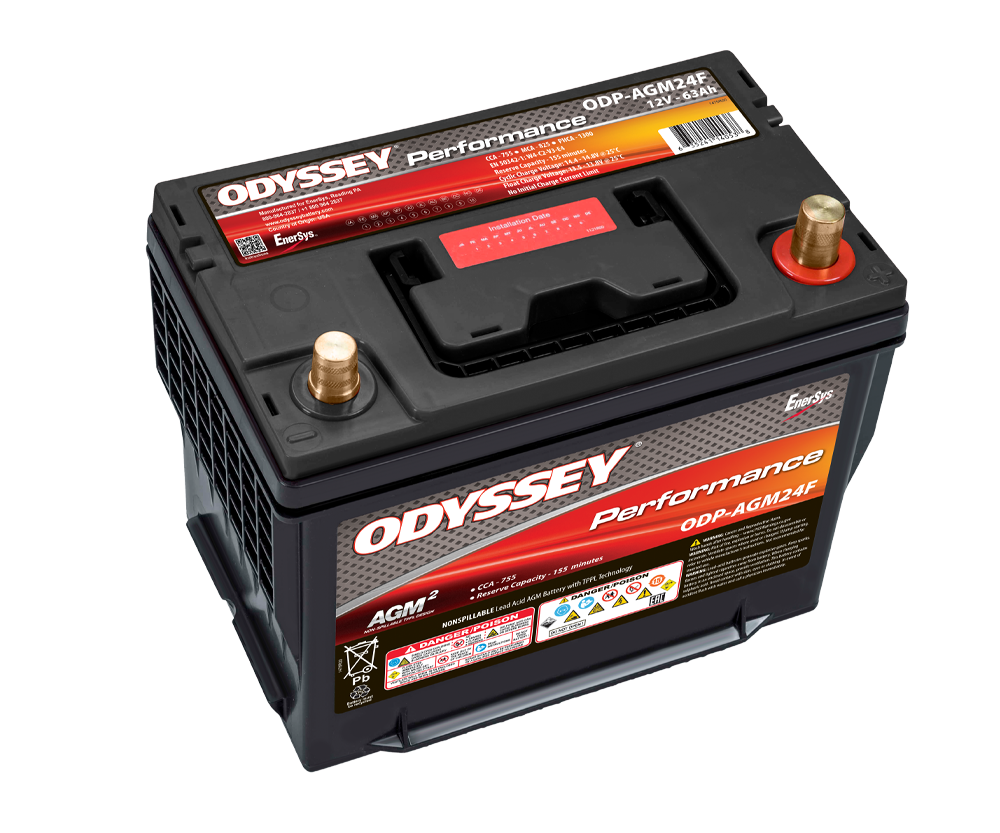

 ODP-AGM24F (ELT-AGM24F) |
12 | 1300 | 755 | 950 | 825 | 63 | 58 | 155 | 10.9 (277) |
6.8 (173) |
8.8 (224) |
8.2 (208) |
51.4 (23.3) |
SAE | N/A | 4.2 | View | ||

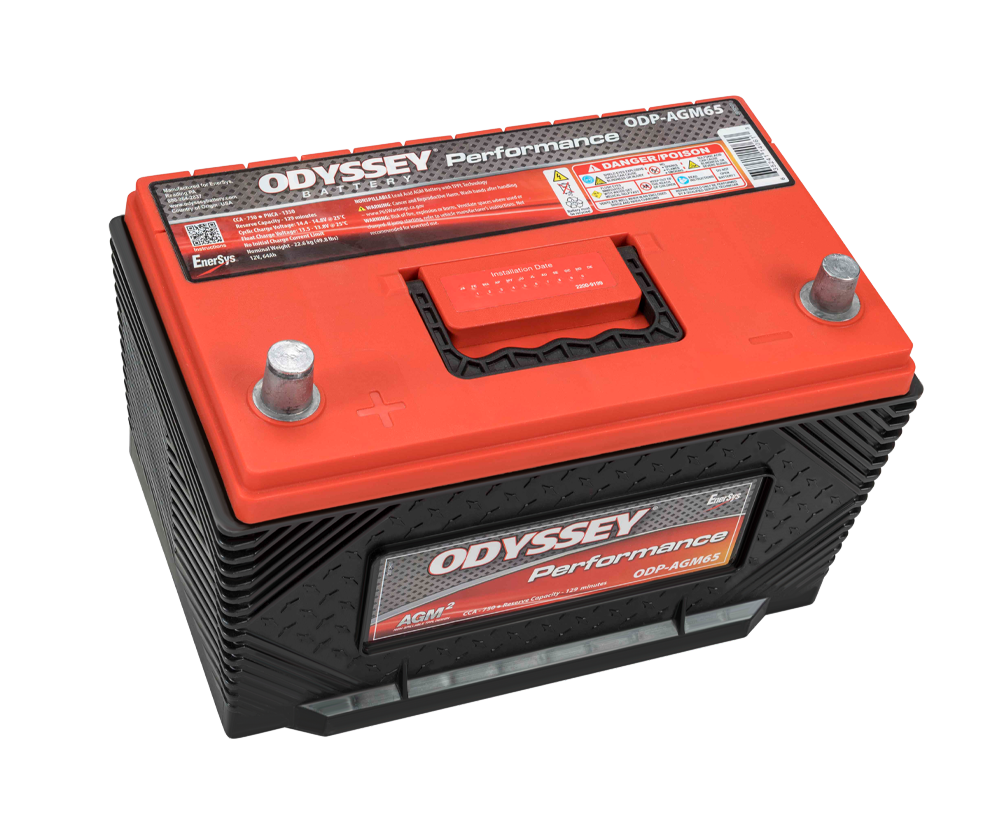

 ODP-AGM65 (65-760) |
12 | 1500 | 762 | 1200 | 890 | 64 | 59 | 129 | 11.8 (300) |
7.2 (183) |
7.6 (193) |
6.8 (173) |
49.8 (22.6) |
SAE | N/A | 2.3 | View | ||

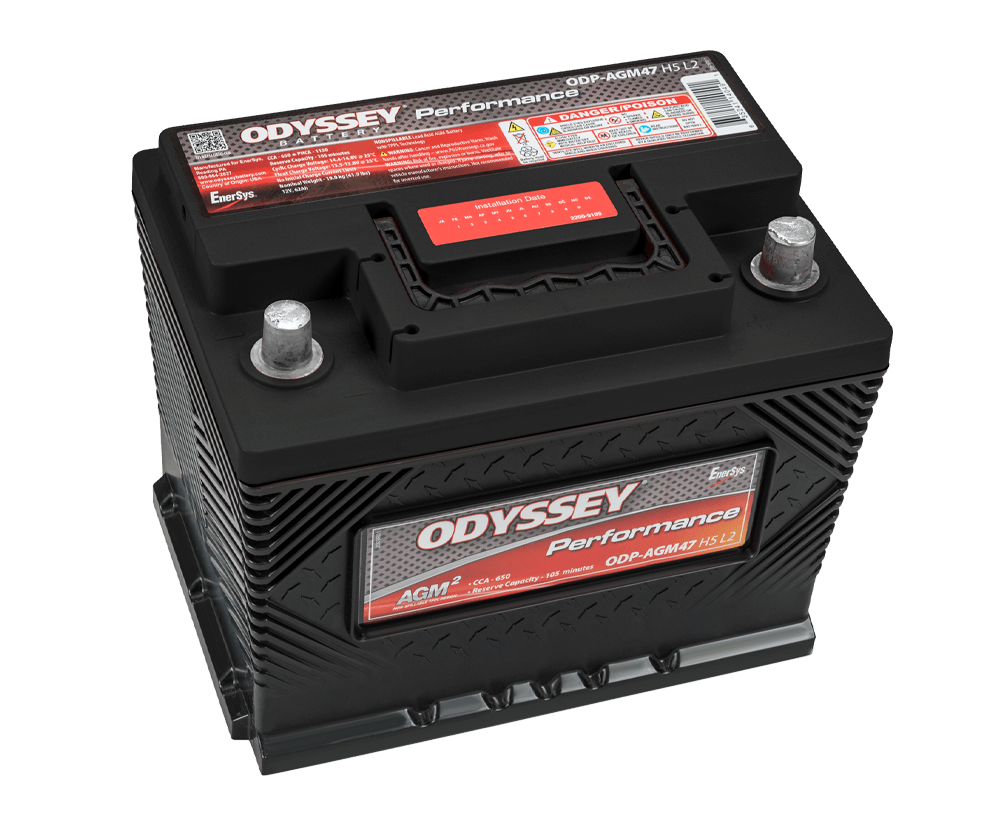

 ODP-AGM47 H5 L2 (47-650 (LN2-H5)) |
12 | 1150 | 650 | 850 | 750 | 64 | 58 | 105 | 9.5 (241) |
6.9 (175) |
7.4 (188) |
7.5 (191) |
41.9 (19.0) |
SAE | N/A | 3.2 | View | ||

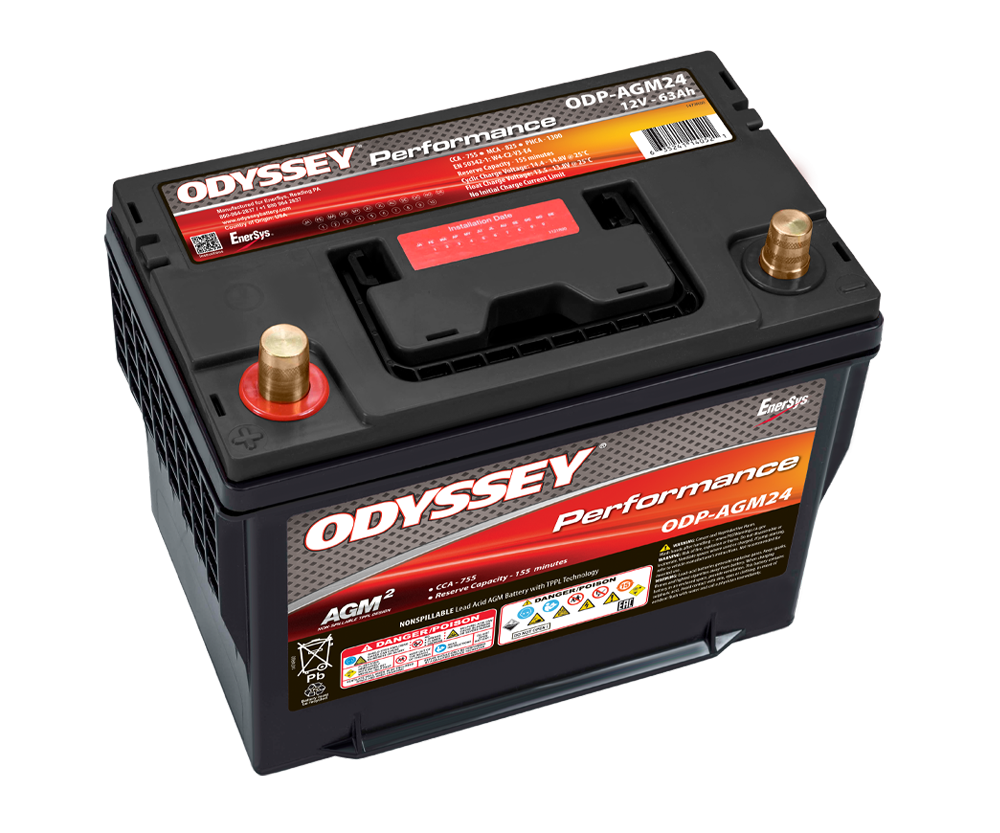

 ODP-AGM24 (24-725) |
12 | 1300 | 755 | 950 | 825 | 63 | 58 | 155 | 10.9 (277) |
6.8 (173) |
8.8 (224) |
8.2 (208) |
51.4 (23.3) |
SAE | N/A | 4.2 | View | ||

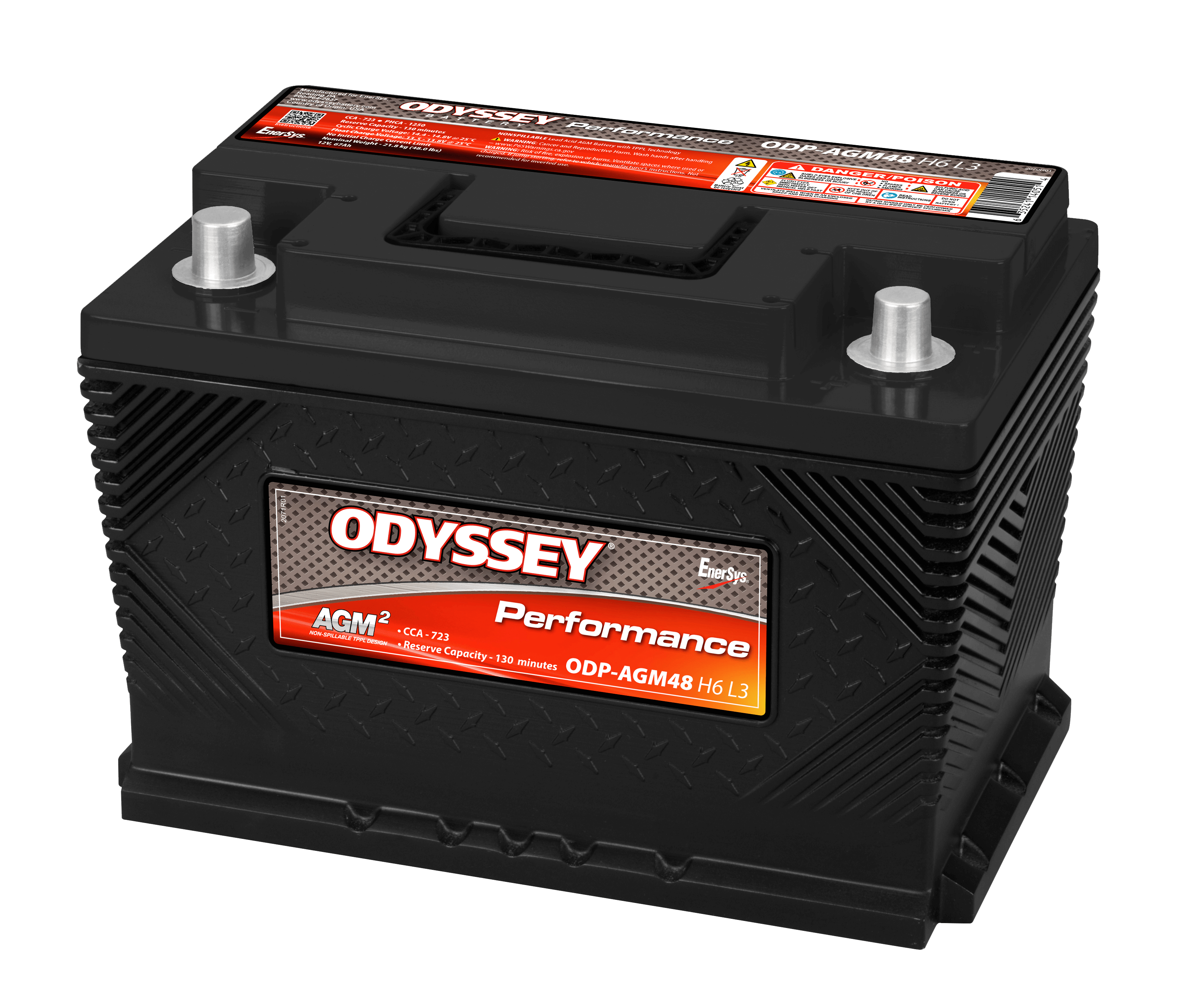

 ODP-AGM48 H6 L3 (48-720 (LN3- H6)) |
12 | 1250 | 760 | 950 | 840 | 70 | 63 | 130 | 10.9 (277) |
6.9 (175) |
7.4 (188) |
7.5 (191) |
48 (21.8) |
SAE | N/A | 2.8 | View | ||

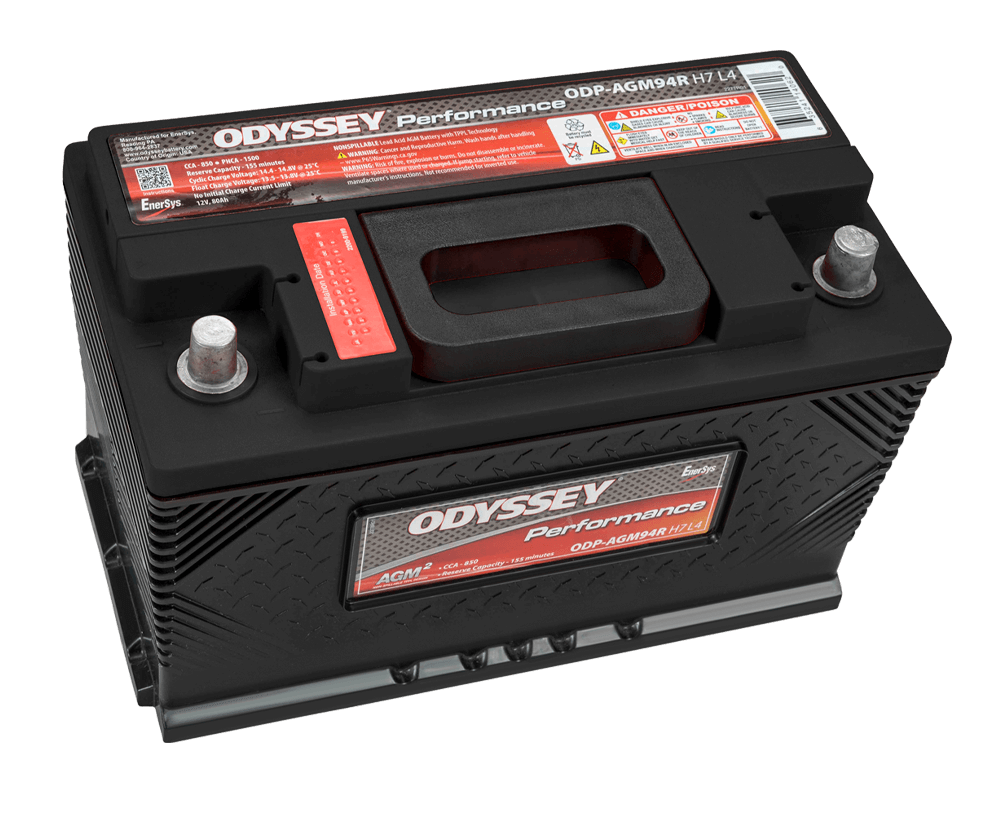

 ODP-AGM94R H7 L4 (94R-850 (LN4-H7)) |
12 | 1500 | 850 | 1200 | 1000 | 80 | 76 | 155 | 12.4 (315) |
6.9 (175) |
7.4 (188) |
7.5 (191) |
54.8 (24.9) |
SAE | N/A | 5.7 | View | ||

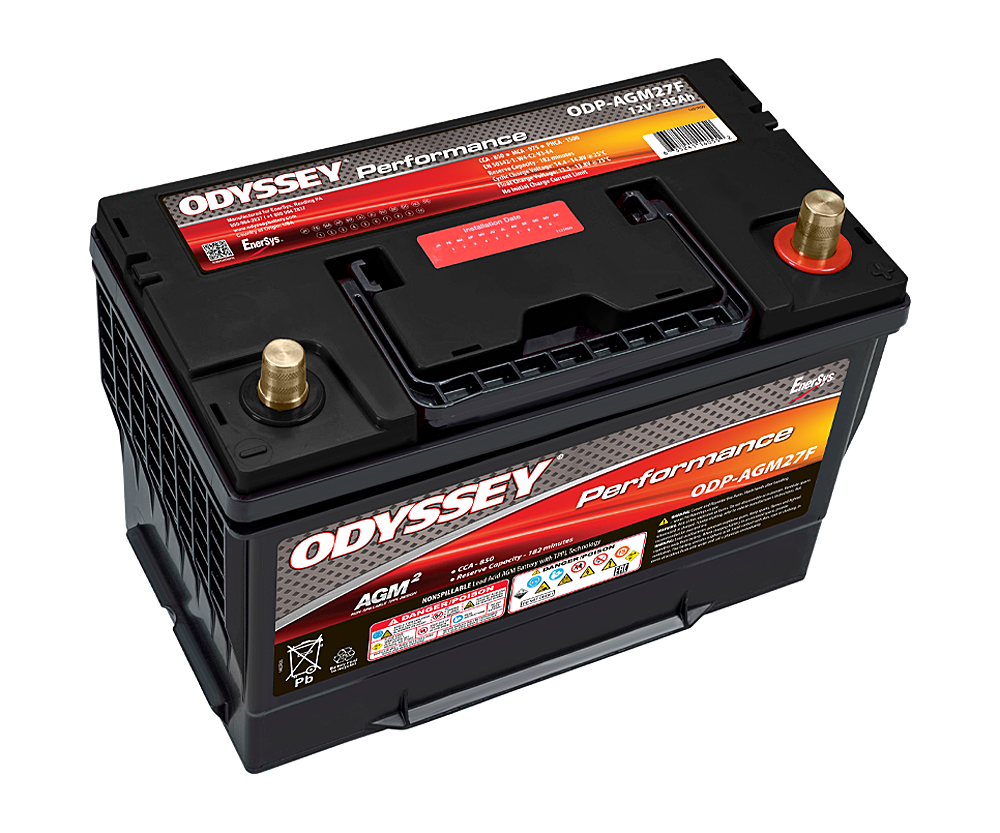

 ODP-AGM27F (ELT-AGM27F) |
12 | 1500 | 850 | 1150 | 975 | 85 | 79 | 182 | 12.5 (318) |
6.8 (173) |
8.8 (224) |
8.2 (208) |
59.7 (27.1) |
SAE | N/A | 3.8 | View | ||

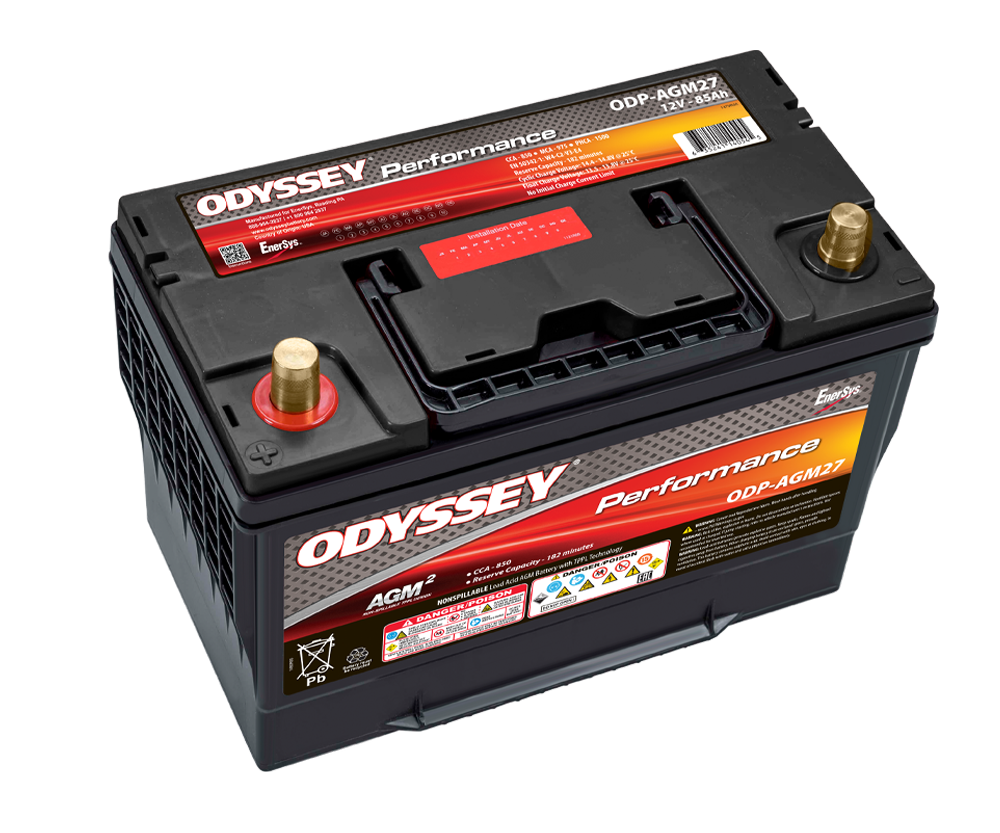

 ODP-AGM27 (ELT-AGM27) |
12 | 1500 | 850 | 1150 | 975 | 85 | 79 | 182 | 12.5 (318) |
6.8 (173) |
8.8 (224) |
8.2 (208) |
59.7 (27.1) |
SAE | N/A | 3.8 | View | ||

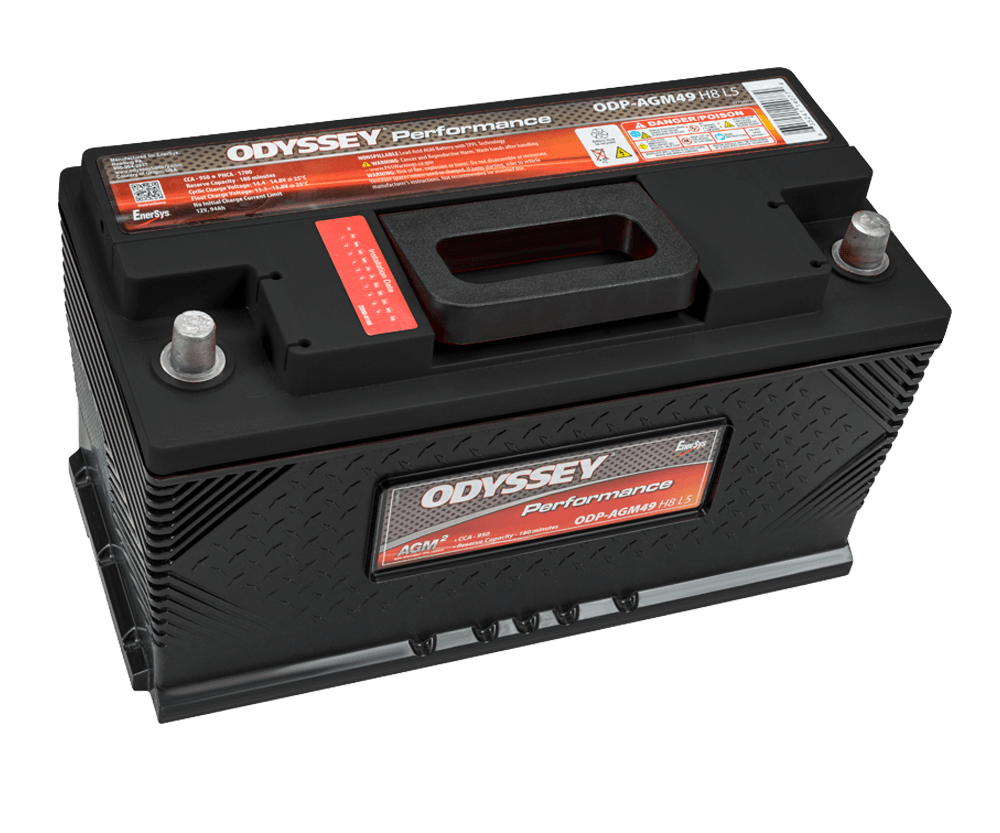

 ODP-AGM49 H8 L5 (49-950 (LN5-H8)) |
12 | 1700 | 950 | 1300 | 1150 | 95 | 85 | 190 | 13.9 (353) |
6.9 (175) |
7.4 (188) |
7.5 (191) |
62.8 (28.5) |
SAE | N/A | 4.8 | View | ||

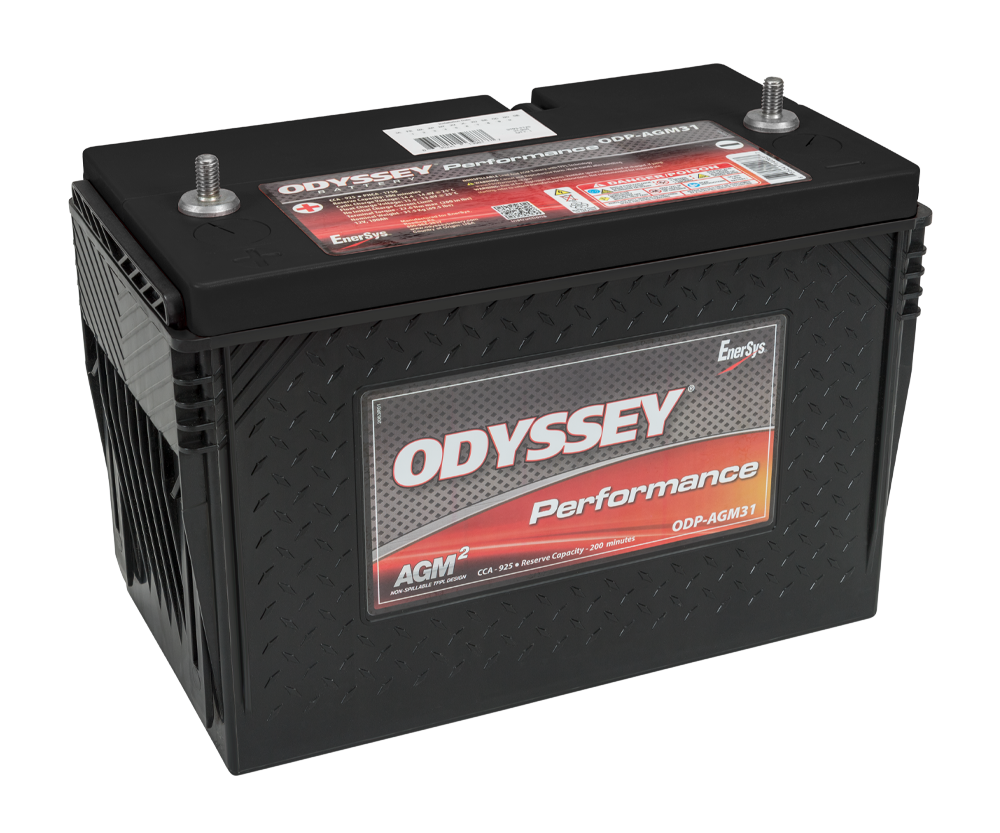

 ODP-AGM31 (31-925S) |
12 | 1750 | 925 | 1325 | 1150 | 100 | 92 | 200 | 13 (330) |
6.8 (173) |
9.6 (244) |
8.6 (218) |
69.5 (31.5) |
3/8-16" Stud | 200 (22.6) | 2.6 | View | ||

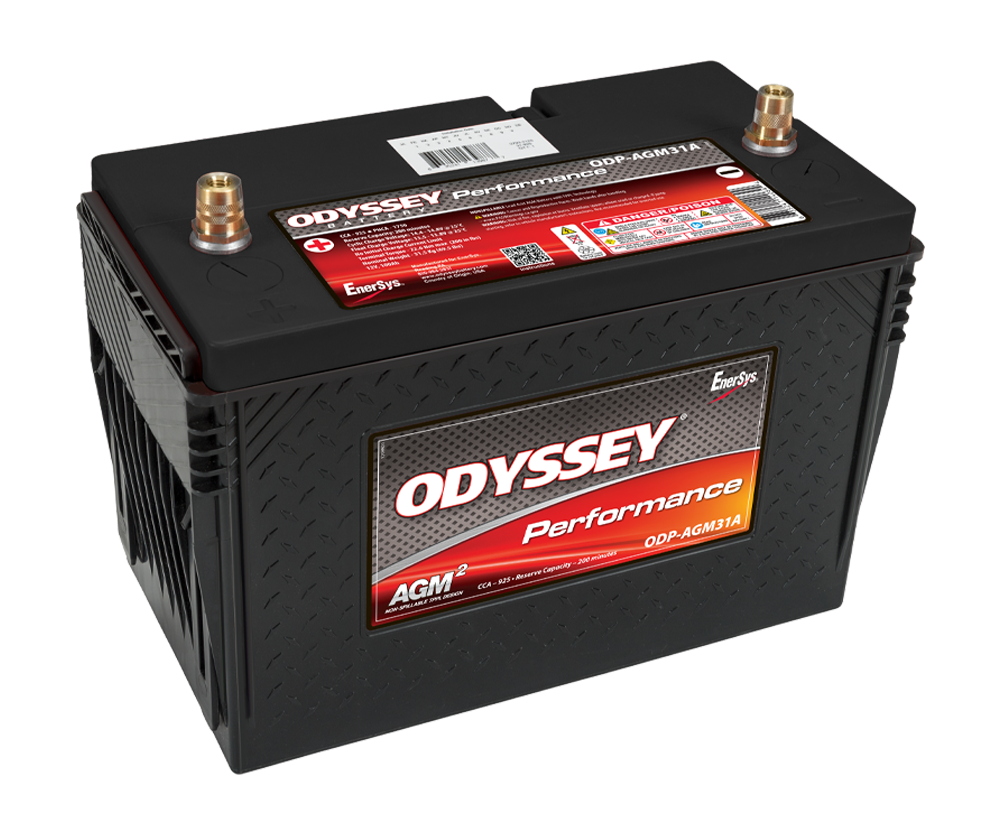

 ODP-AGM31A (31-925T) |
12 | 1750 | 925 | 1325 | 1150 | 100 | 92 | 200 | 13 (330) |
6.8 (173) |
9.4 (239) |
8.6 (218) |
69.5 (31.5) |
SAE | N/A | 2.6 | View | ||

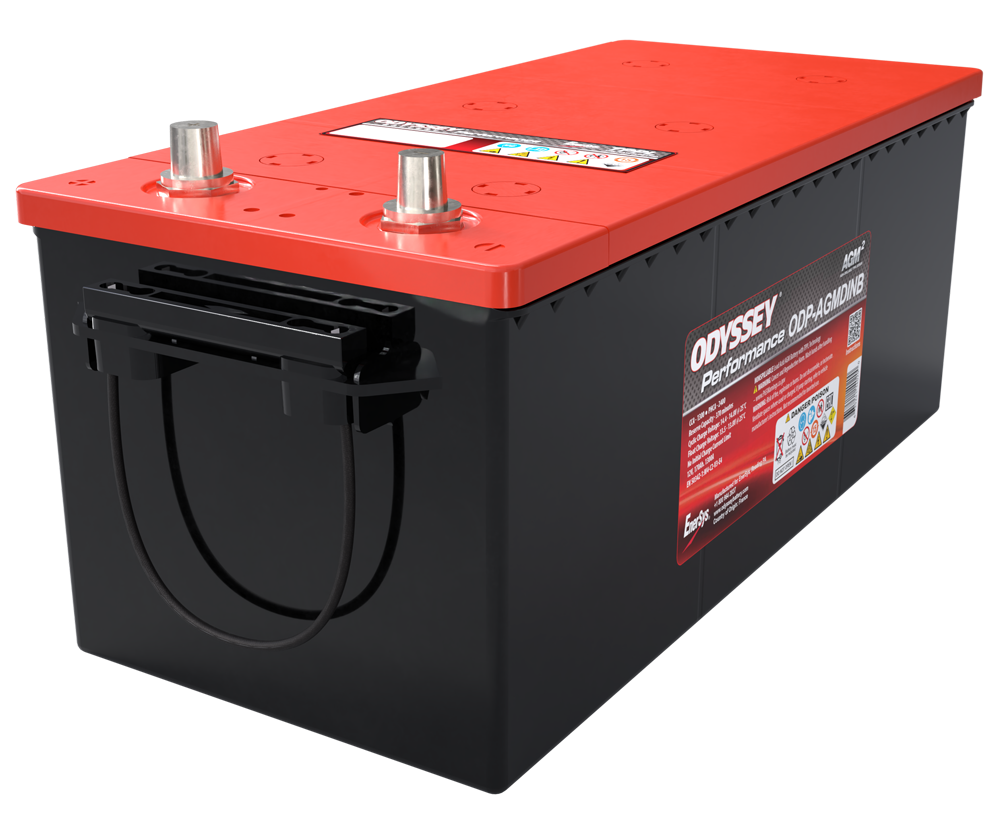

 ODP-AGMDINB (629-DIN B-1300) |
12 | 2400 | 1300 | 1747 | 1549 | 170 | 153 | 370 | 20.39 (518) |
8.78 (223) |
8.58 (218) |
8.28 (210) |
117.3 (53.2) |
SAE | 60 (6.8) | 2.0 | View | ||

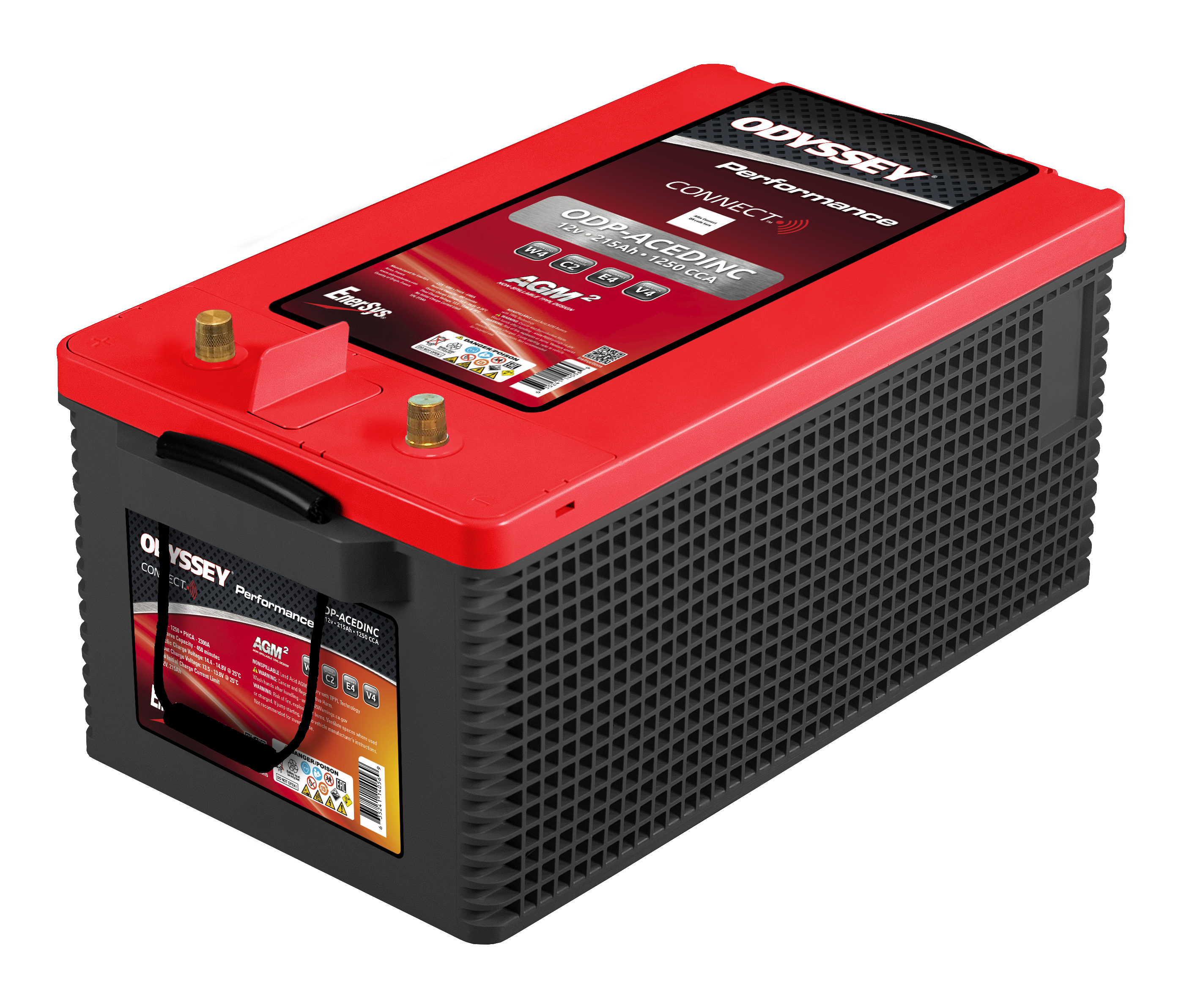

 ODP-ACEDINC |
12 | 2300 | 1250 | 1750 | 1500 | 215 | 190 | 450 | 20.4 (518) |
10.8 (274) |
9.5 (241) |
() |
143 (64.9) |
SAE | - | 2.7 | |||
 ODP-AGMDINC |
12 | 2300 | 1250 | 1750 | 1500 | 215 | 190 | 450 | 20.4 (518) |
10.8 (274) |
9.5 (241) |
8.5 (216) |
143 (64.9) |
SAE | 2.7 |
ODYSSEY® Extreme (ODX) Batteries
Where size and power matters, the ODYSSEY Extreme (ODX) battery gives you it all. With its heritage in military and specialist vehicle applications, this range is the toughest you can get – whether it’s extreme terrain, temperatures or power demand, or all of them combined, the ODX range will deliver.
| NEW PART NUMBER (Old Part Number) |
Voltage | PHCA** 5 sec. [A] |
MHPCA* [A] |
MPCA* [A] |
CCA* [A] |
HCA* [A] |
MCA* [A] |
20 HR Rate [Ah] |
10 HR Rate [Ah] |
Reserve Capacity [Minutes] |
Maximum Length [in (mm)] |
Maximum Width [in (mm)] |
Maximum Total Height [in (mm)] |
Maximum Container Height [in (mm)] |
Weight [lb (kg)] |
Terminal | Maximum Torque [in-lb (Nm)] |
Internal Resistance [mΩ] |
Terminal Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

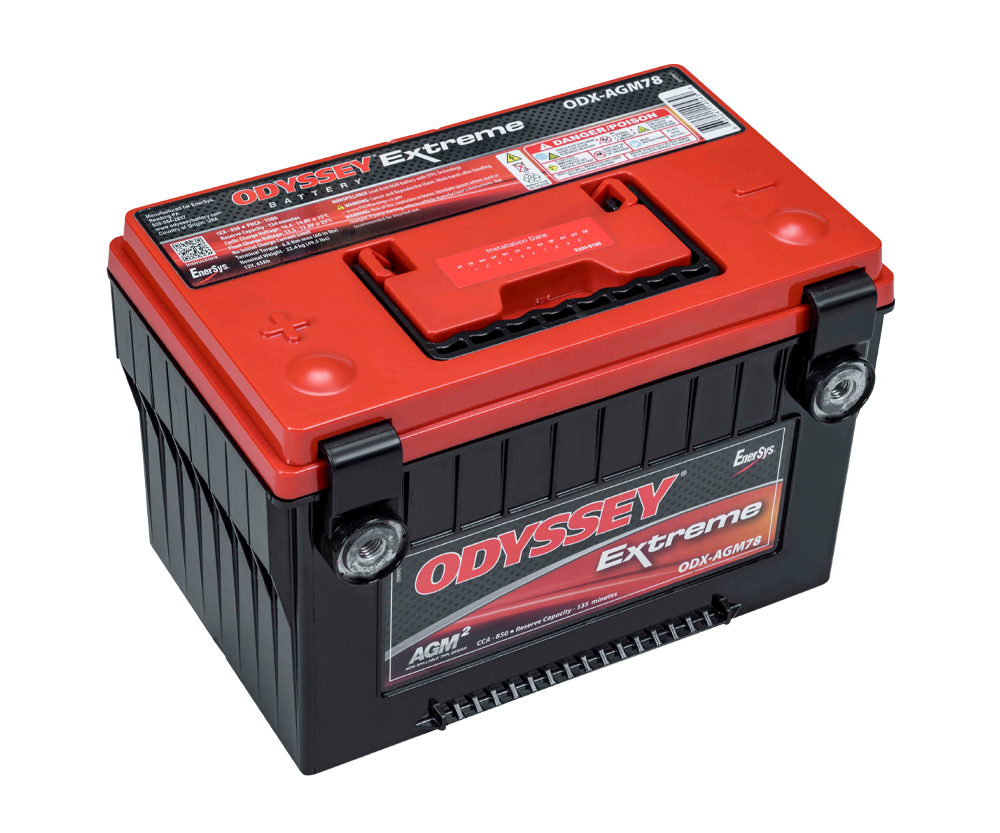

 ODX-AGM78 (78-PC1500) |
12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 135 | 10.9 (277) |
6.8 (173) |
7.3 (185) |
7.3 (185) |
49.5 (22.5) |
Side | 60 (6.8) | 2.5 | View | ||

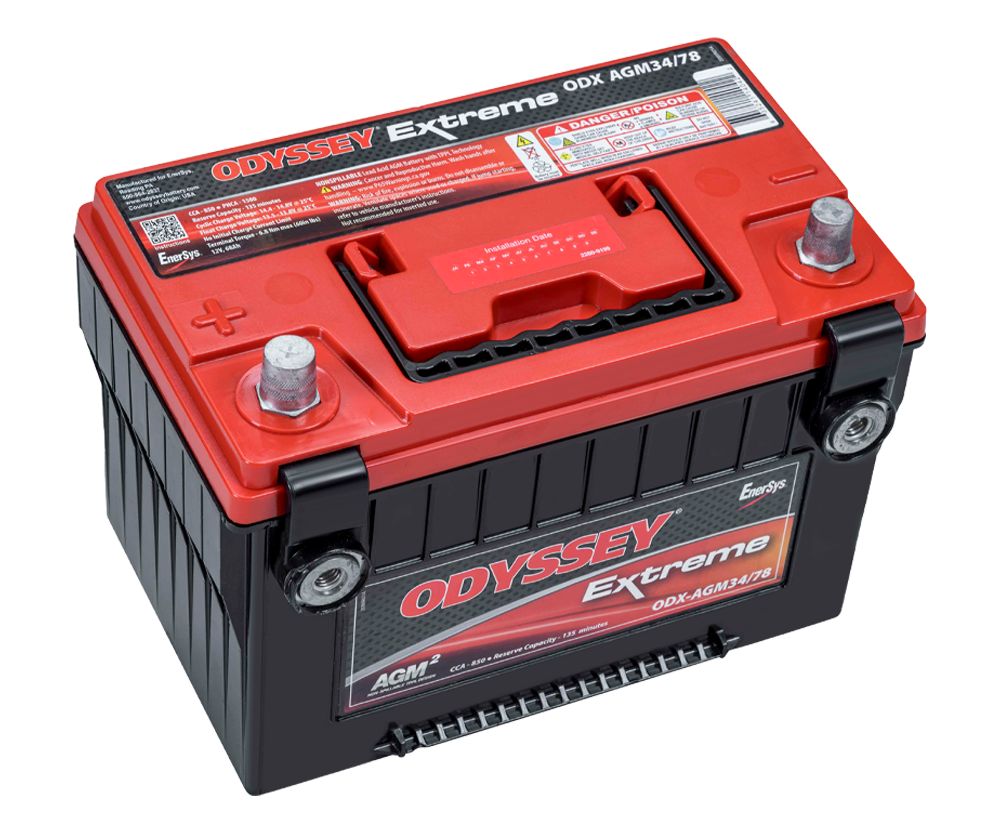

 ODX-AGM34 78 (34/78-PC1500) |
12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 135 | 10.9 (277) |
6.8 (173) |
7.9 (201) |
7.3 (185) |
49.5 (22.5) |
SAE & Side | 60 (6.8) side terminal only | 2.5 | View | ||

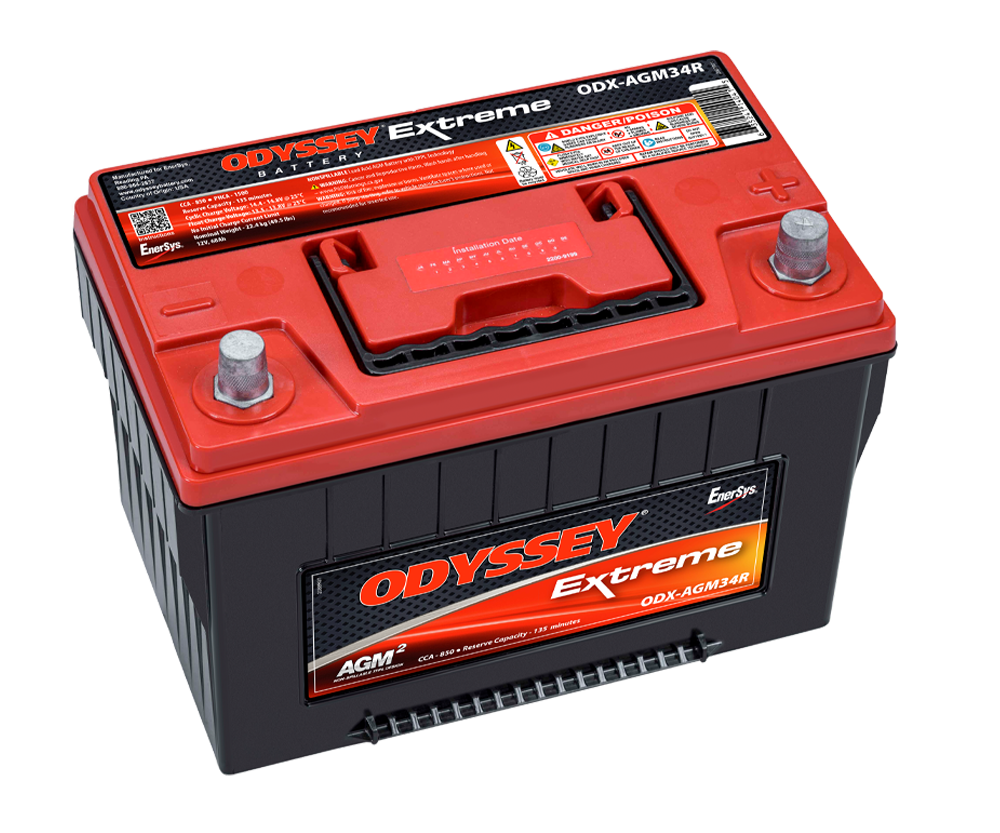

 ODX-AGM34R (34R-PC1500) |
12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 135 | 10.9 (277) |
6.8 (173) |
7.9 (201) |
7.3 (185) |
49.5 (22.5) |
SAE | N/A | 2.5 | View | ||

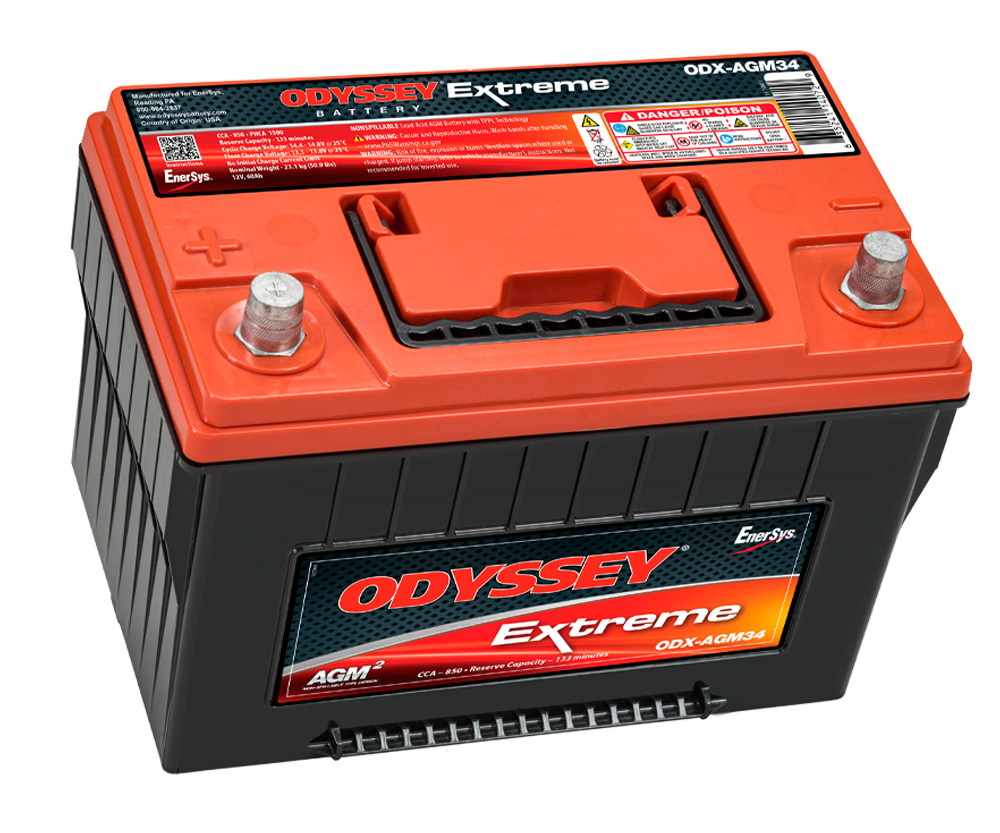

 ODX-AGM34 (34-PC1500) |
12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 135 | 10.9 (277) |
6.8 (173) |
7.9 (201) |
7.3 (185) |
49.5 (22.5) |
SAE | N/A | 2.5 | View | ||

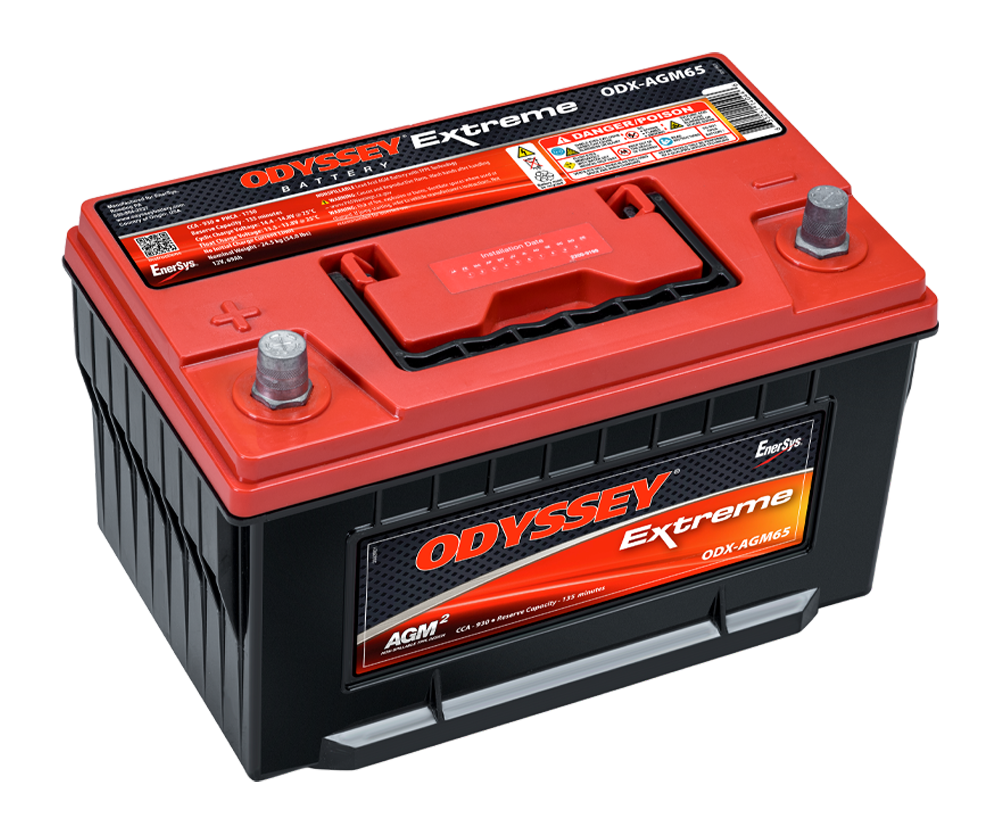

 ODX-AGM65 (65-PC1750) |
12 | 1750 | 950 | 1350 | 1070 | 74 | 65 | 145 | 11.8 (300) |
7.2 (183) |
7.5 (191) |
6.8 (173) |
54 (24.5) |
SAE | N/A | 2 | View | ||

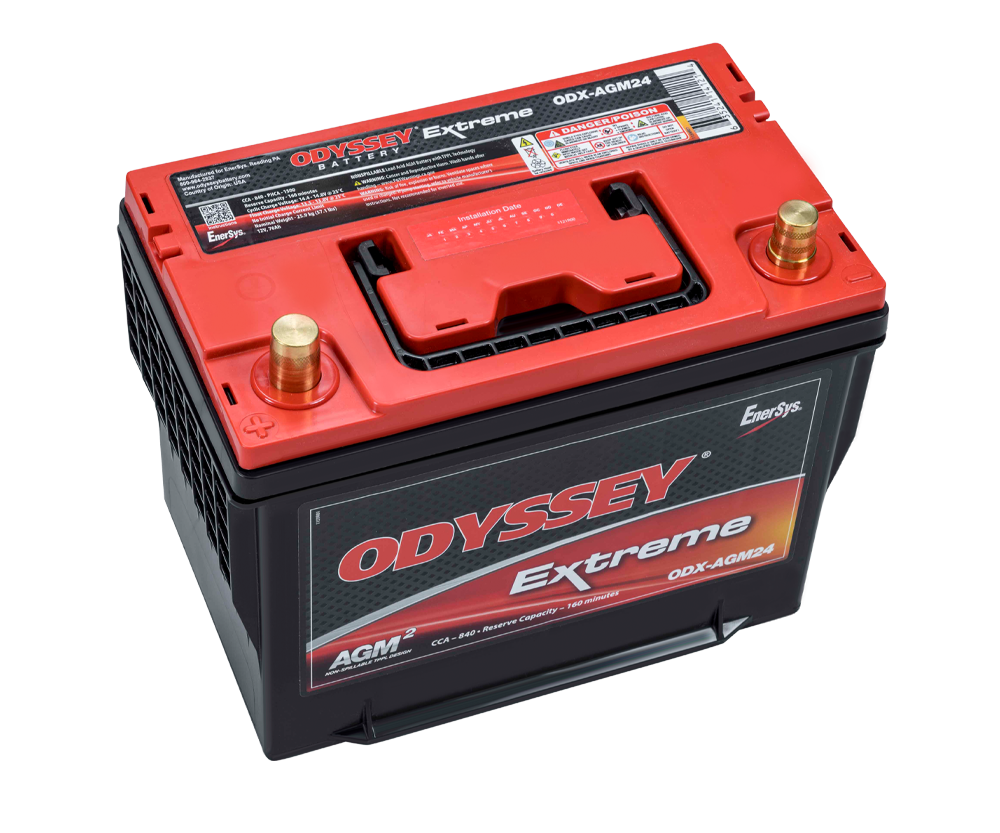

 ODX-AGM24 (NSB-AGM24) |
12 | 1500 | 840 | 1200 | 1000 | 76 | 73 | 160 | 10.9 (277) |
6.8 (173) |
8.8 (224) |
8.2 (208) |
57.1 (25.9) |
SAE | N/A | 3 | View | ||

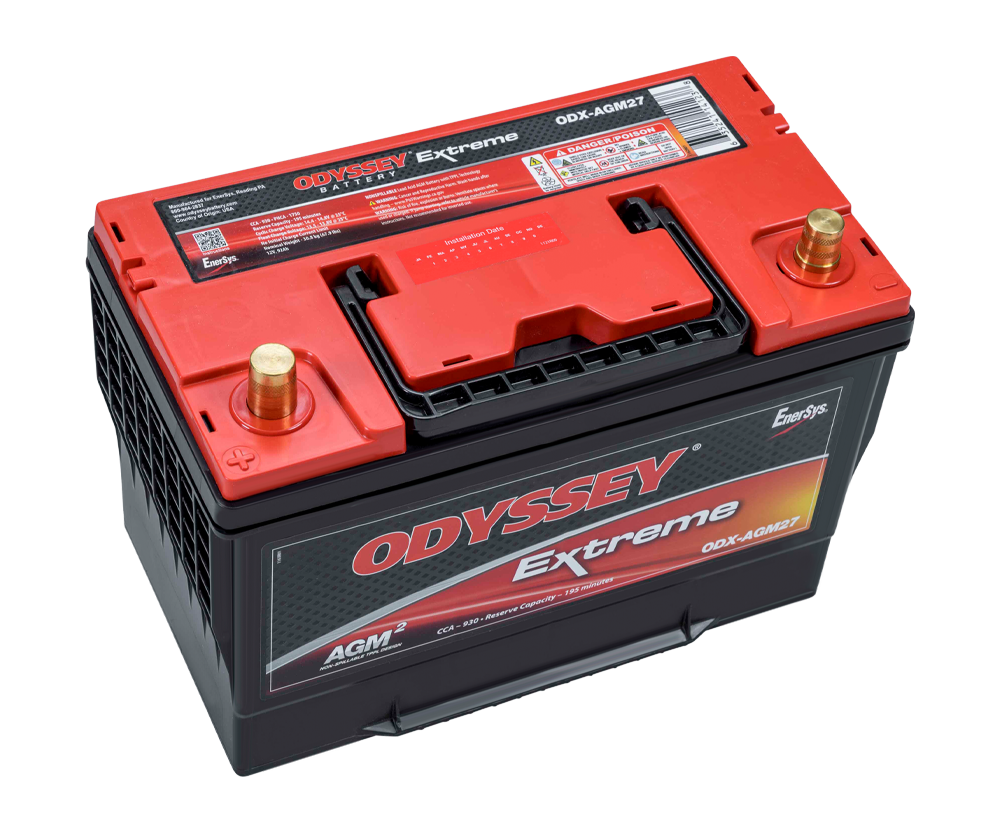

 ODX-AGM27 (NSB-AGM27) |
12 | 1750 | 930 | 1290 | 1080 | 92 | 88 | 195 | 12.5 (318) |
6.8 (173) |
8.8 (224) |
8.2 (208) |
67.9 (30.8) |
SAE | N/A | 2.6 | View | ||

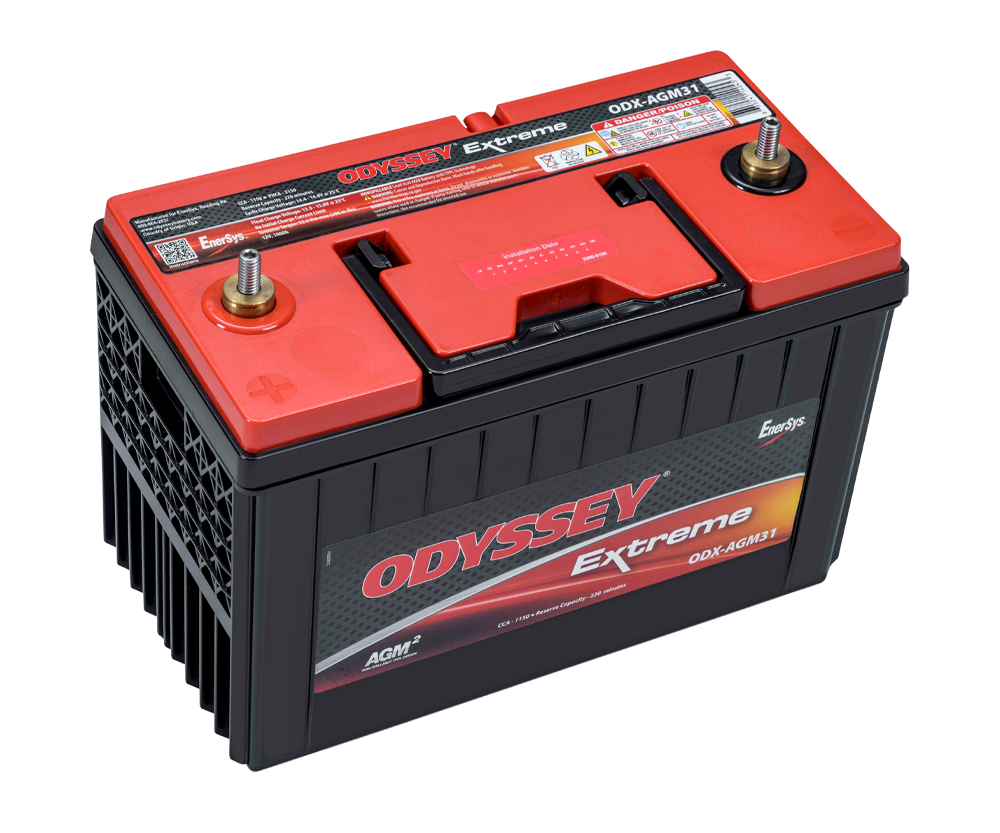

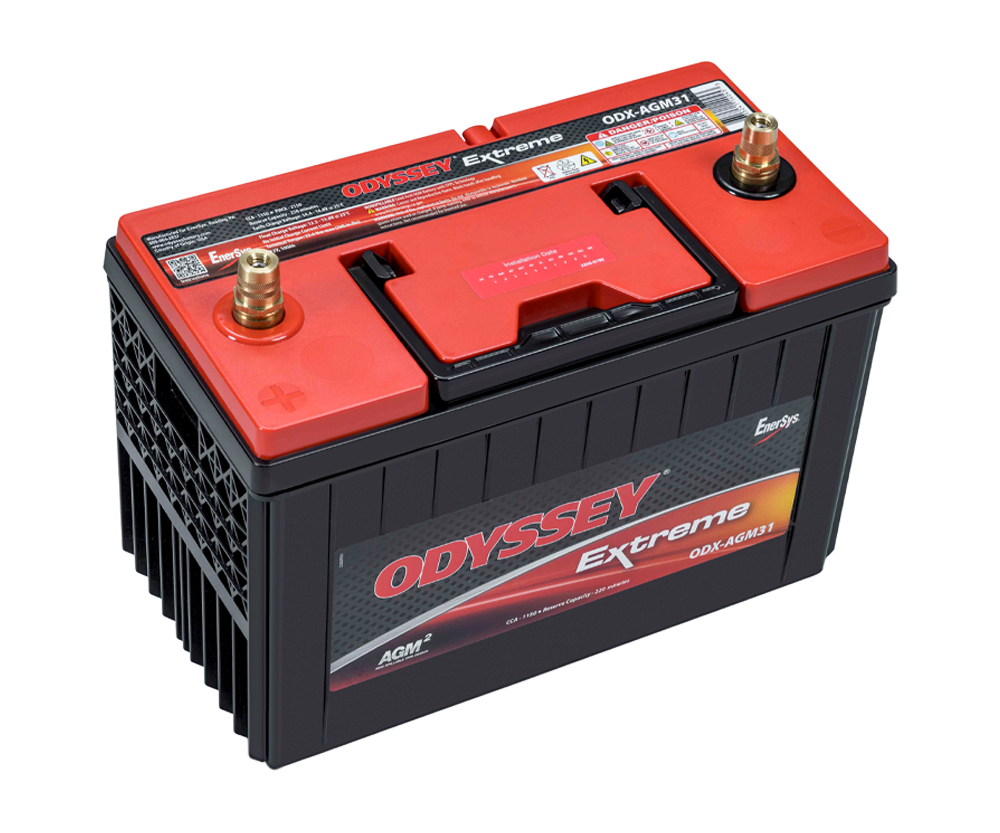

 ODX-AGM31 (31-PC2150S) |
12 | 2150 | 1150 | 1545 | 1370 | 103 | 98 | 220 | 13 (330) |
6.8 (173) |
9.5 (241) |
8.5 (216) |
77.8 (35.3) |
3/8-16" Stud | 200 (22.6) studs only | 2.2 | View | ||
 ODX-AGM31A (31-PC2150T) |
12 | 2150 | 1150 | 1545 | 1370 | 103 | 98 | 220 | 13 (330) |
6.8 (173) |
9.7 (246) |
8.5 (216) |
77.8 (35.3) |
SAE | N/A | 2.2 | View | ||

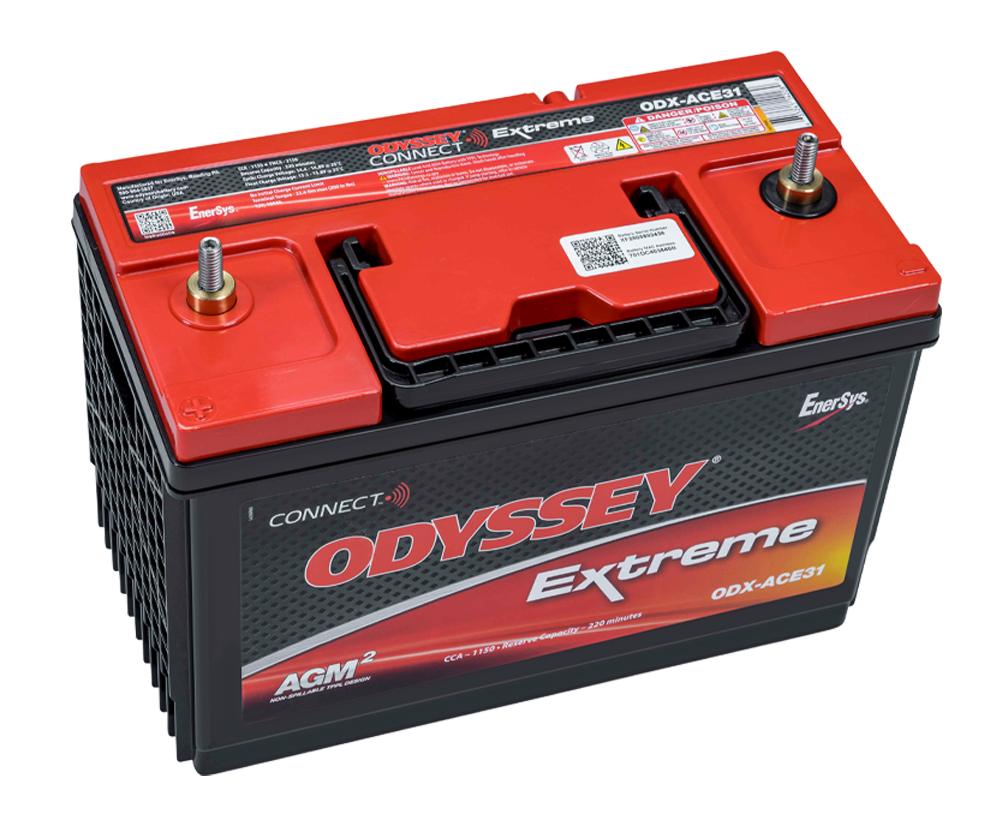

 ODX-ACE31 |
12 | 2150 | 1150 | 1545 | 1370 | 103 | 98 | 220 | 13 (330) |
6.8 (173) |
9.5 (241) |
8.5 (216) |
77.8 (35.3) |
3/8-16" Stud | 200 (22.6) studs only | 2.2 | View |
ODYSSEY® Power & Motorsports (ODS) Batteries
With a pedigree and reputation known across the Power & Motorsports world, ODYSSEY® Power & Motorsports (ODS) batteries provide concentrated extreme dual-purpose power while supplying exceptional reliability, service life and deep-cycle capabilities to keep you ahead.
| NEW PART NUMBER (Old Part Number) |
Voltage | PHCA** 5 sec. [A] |
MHPCA* [A] |
MPCA* [A] |
CCA* [A] |
HCA* [A] |
MCA* [A] |
20 HR Rate [Ah] |
10 HR Rate [Ah] |
Reserve Capacity [Minutes] |
Maximum Length [in (mm)] |
Maximum Width [in (mm)] |
Maximum Total Height [in (mm)] |
Maximum Container Height [in (mm)] |
Weight [lb (kg)] |
Terminal | Maximum Torque [in-lb (Nm)] |
Internal Resistance [mΩ] |
Terminal Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

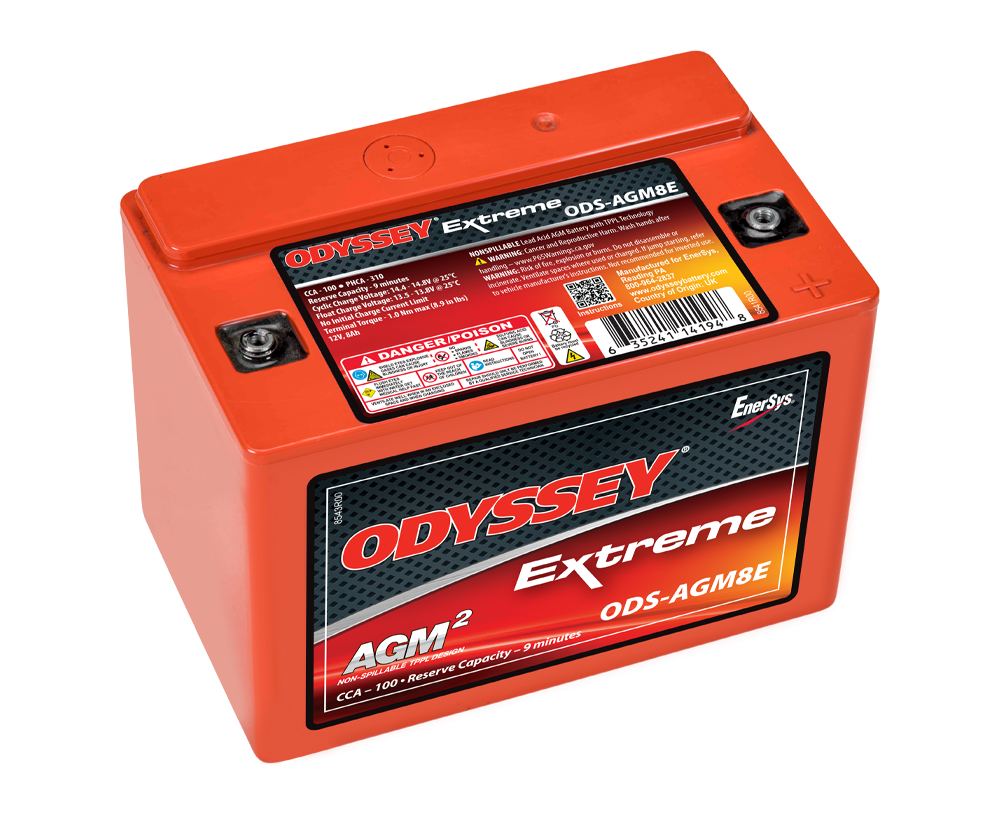

 ODS-AGM8E (PC310) |
12 | 310 | 100 | 200 | 155 | 8 | 7 | 9 | 5.4 (137) |
3.4 (86) |
3.9 (99) |
3.9 (99) |
5.9 (2.7) |
M4 Receptacle | 8.9 (1.0) | 27.1 | View | ||

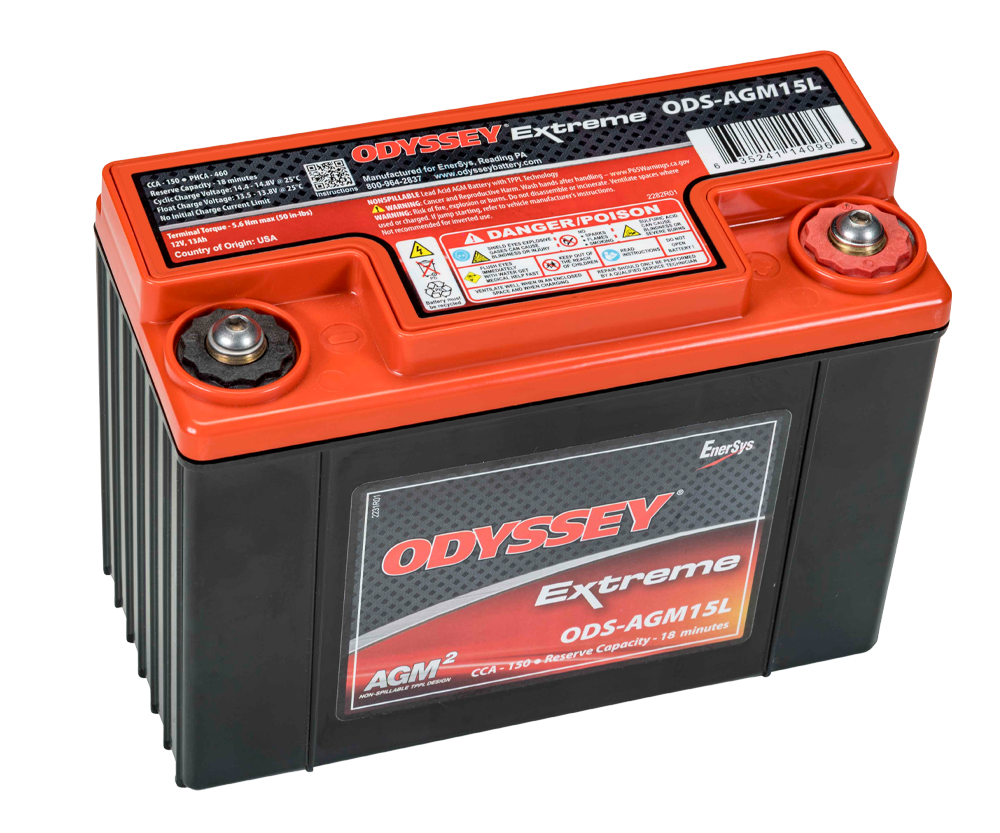

 ODS-AGM15L (PC545) |
12 | 460 | 150 | 280 | 220 | 13 | 12 | 18 | 6.9 (175) |
3.3 (84) |
4.9 (124) |
5.1 (130) |
11.4 (5.2) |
M6 Receptacle | 50 (5.6) | 10 | View | ||

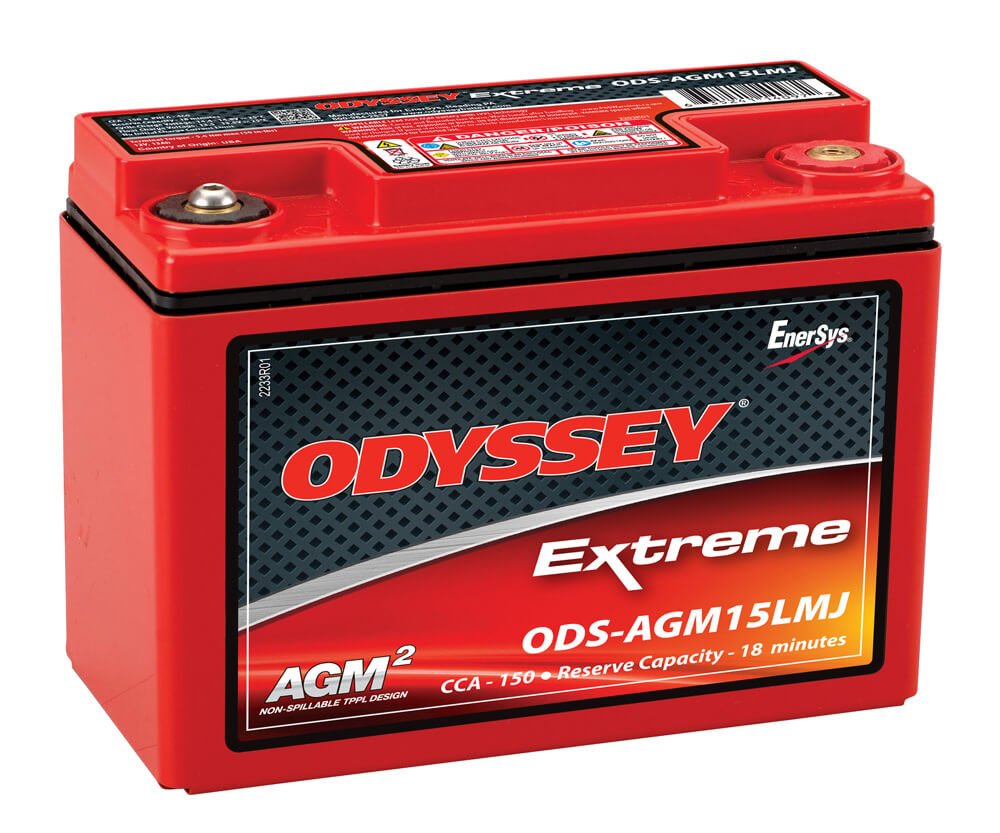

 ODS-AGM15LMJ (PC545MJ) |
12 | 460 | 150 | 280 | 220 | 13 | 12 | 18 | 7 (178) |
3.4 (86) |
4.9 (124) |
5.2 (132) |
12.4 (5.6) |
M6 Receptacle | 50 (5.6) | 10 | View | ||

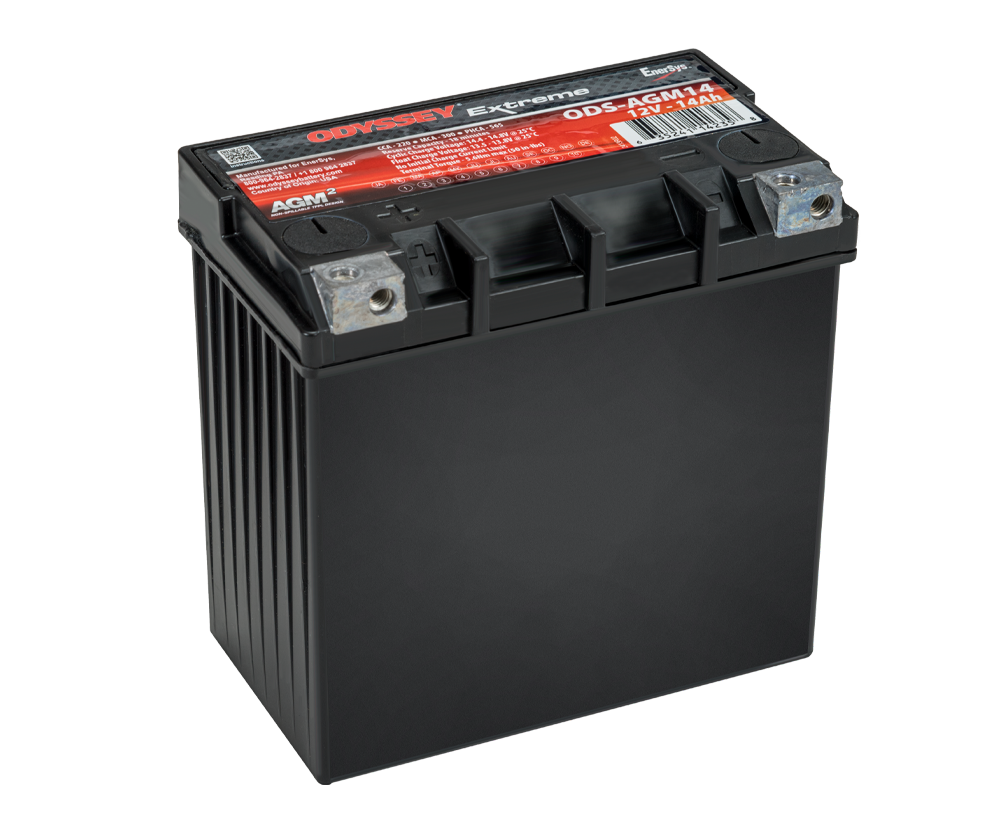

 ODS-AGM14 |
12 | 565 | 220 | 320 | 300 | 14 | 13 | 18 | 5.9 (150) |
3.4 (86) |
5.7 (145) |
5.7 (145) |
10 (4.5) |
M6 Receptacle | 50 (5.6) | View | |||

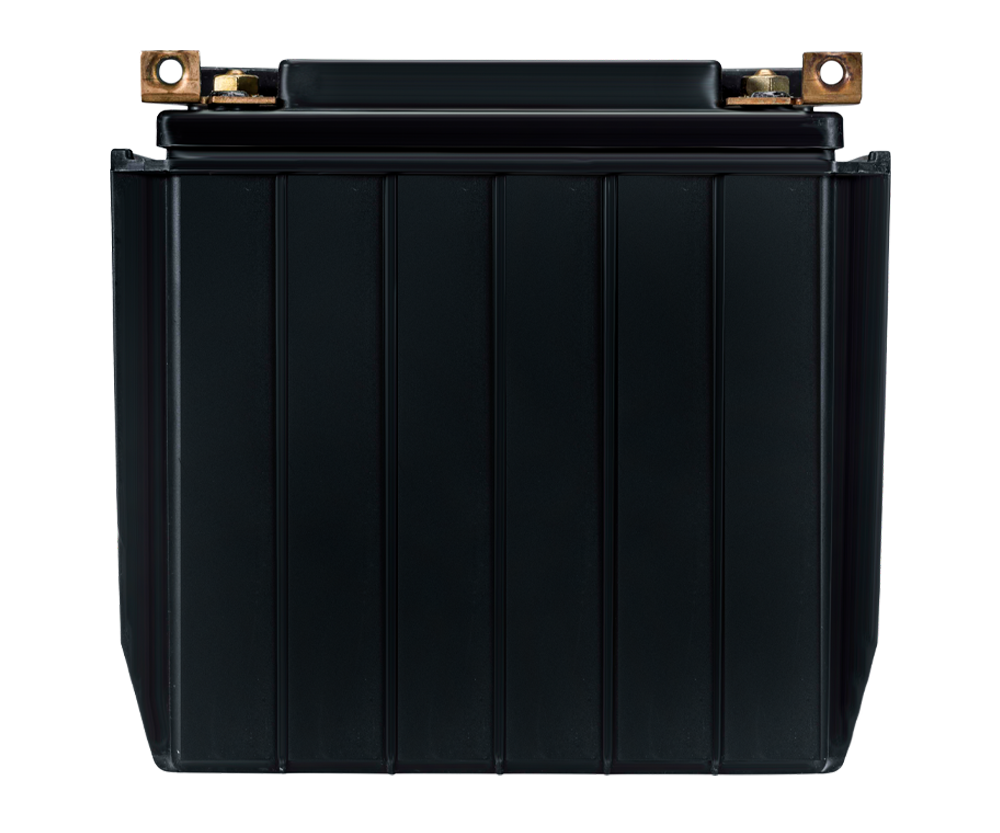

 ODS-AGM16B (discontinued) (PC535) |
12 | 535 | 200 | 300 | 265 | 14 | 13 | 21 | 6.7 (170) |
3.9 (99) |
6.2 (157) |
6.2 (157) |
12 (5.4) |
M6 Receptacle | 40 (4.5) | 8 | View | ||

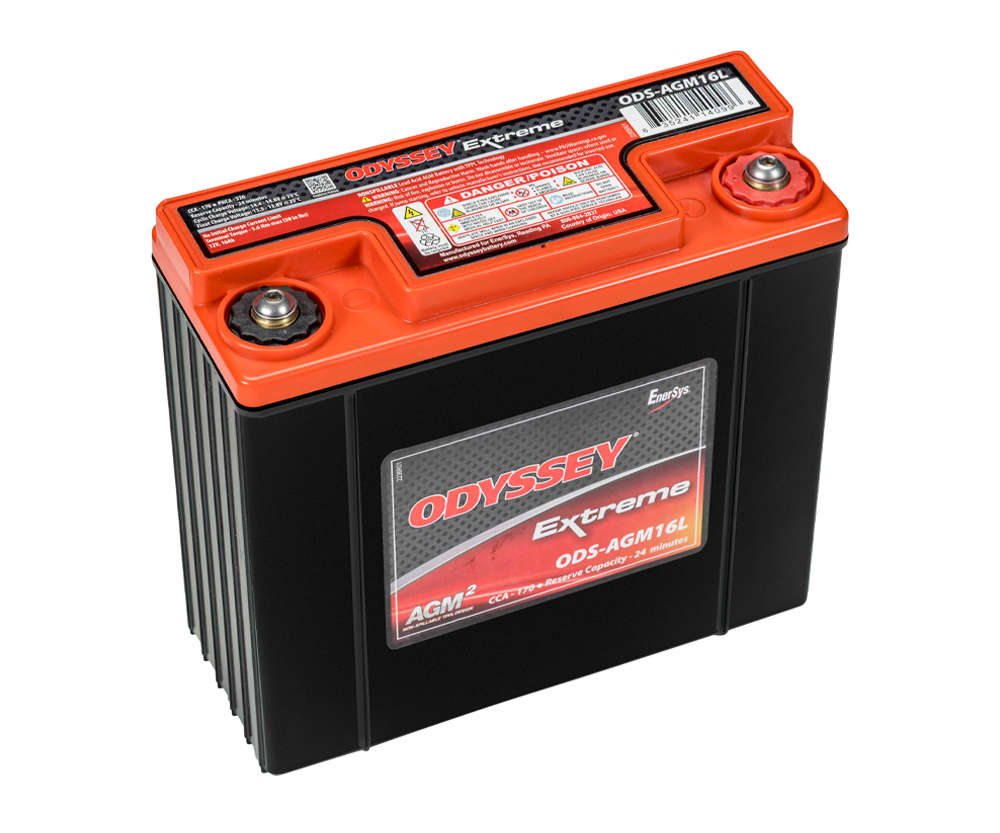

 ODS-AGM16L (PC680) |
12 | 520 | 170 | 350 | 280 | 16 | 16 | 24 | 7.2 (183) |
3 (76) |
6.4 (163) |
6.6 (168) |
15.4 (7.0) |
M6 Receptacle | 50 (5.6) | 7 | View | ||

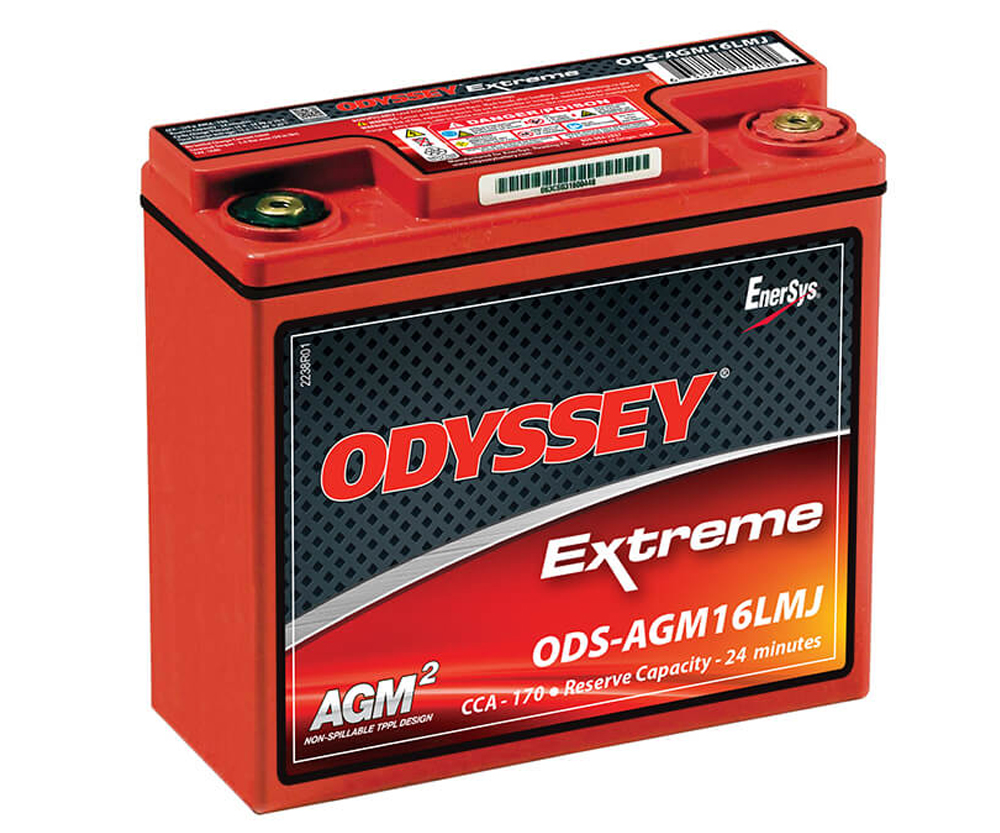

 ODS-AGM16LMJ (PC680MJ) |
12 | 520 | 170 | 350 | 280 | 16 | 16 | 24 | 7.3 (185) |
3.1 (79) |
6.4 (163) |
6.7 (170) |
16.6 (7.5) |
M6 Receptacle | 50 (5.6) | 7 | View | ||

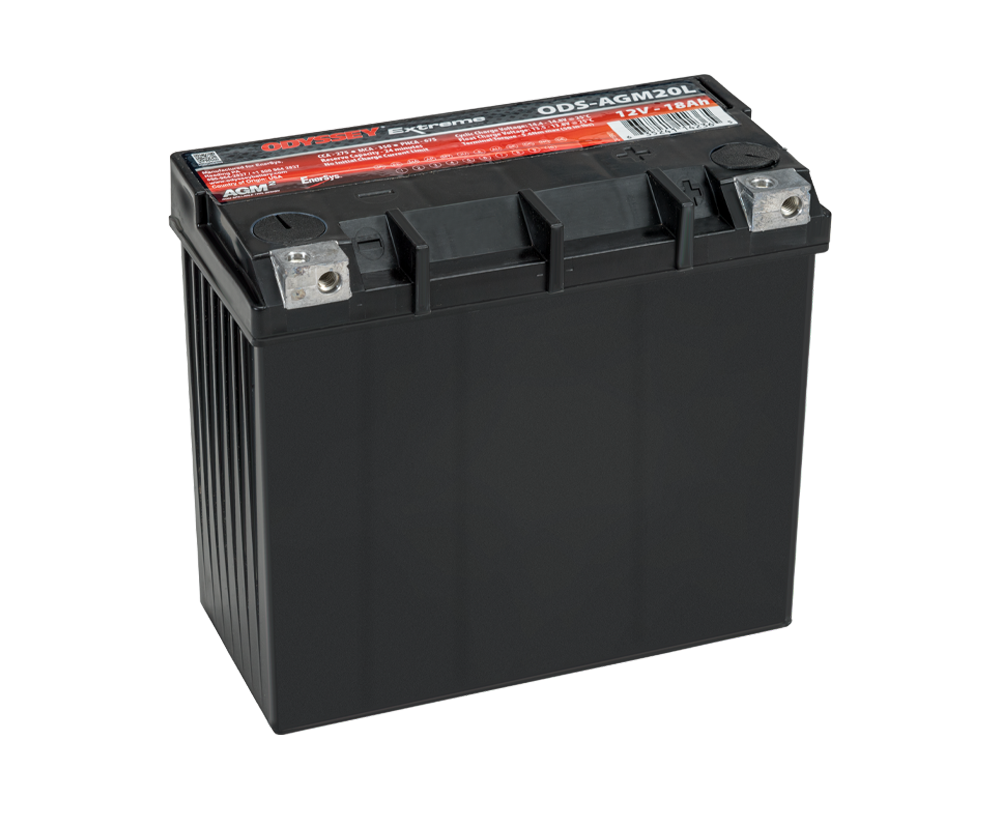

 ODS-AGM20L |
12 | 675 | 275 | 400 | 350 | 18 | 17 | 24 | 6.9 (175) |
3.4 (86) |
6.1 (155) |
6.1 (155) |
13 (5.9) |
M6 Receptacle | 50 (5.6) | View | |||

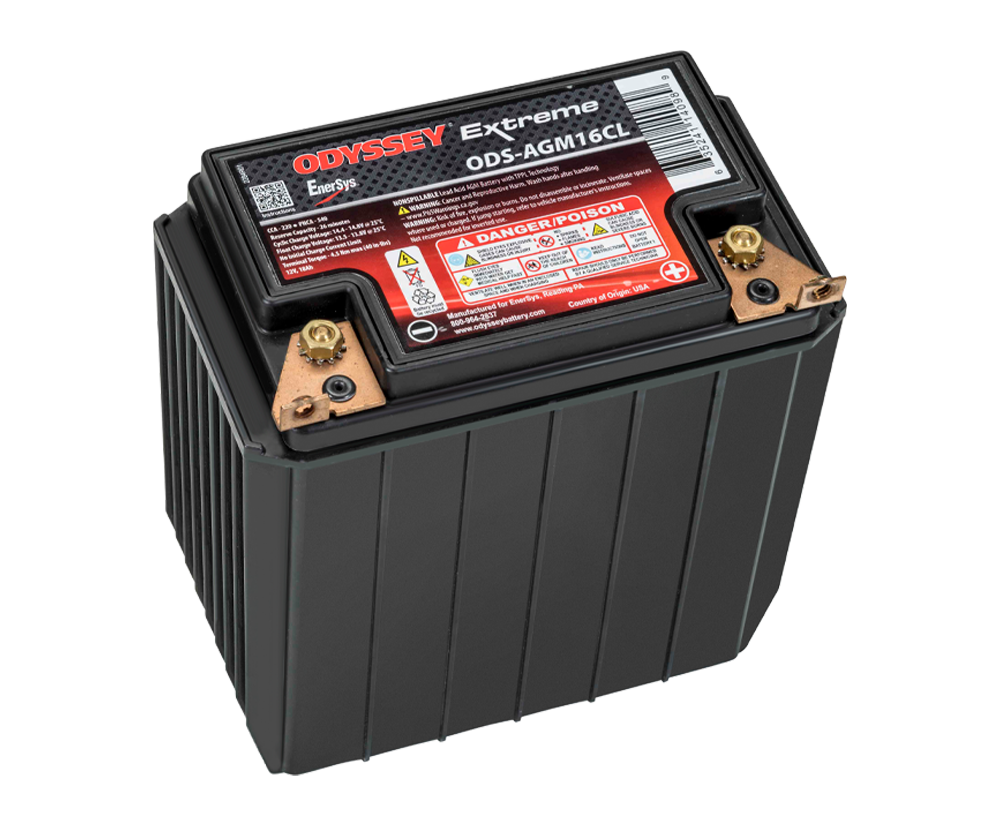

 ODS-AGM16CL (PC625) |
12 | 540 | 220 | 400 | 330 | 18 | 17 | 26 | 6.7 (170) |
3.9 (99) |
7 (178) |
6.9 (175) |
13.2 (6.0) |
M6 Receptacle | 40 (4.5) | 7 | View | ||

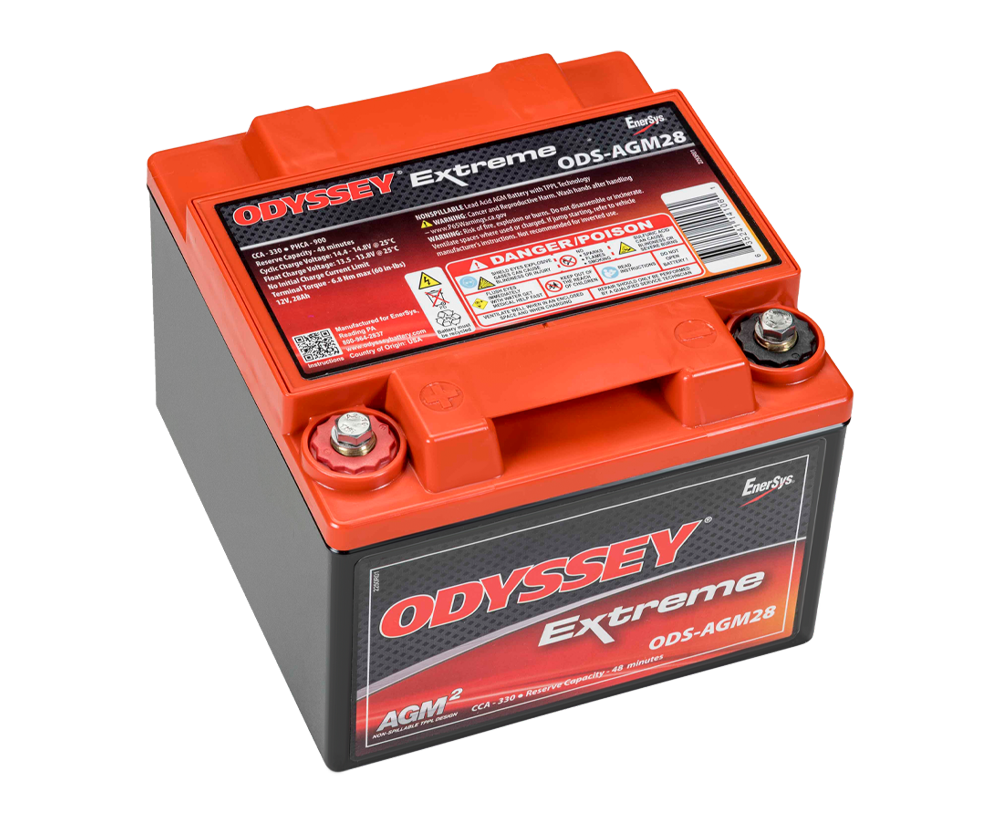

 ODS-AGM28 (PC925L) |
12 | 900 | 330 | 610 | 480 | 28 | 27 | 48 | 6.6 (168) |
6.9 (175) |
4.7 (119) |
5 (127) |
23.8 (10.8) |
M6 Receptacle | 60 (6.8) | 5 | View | ||

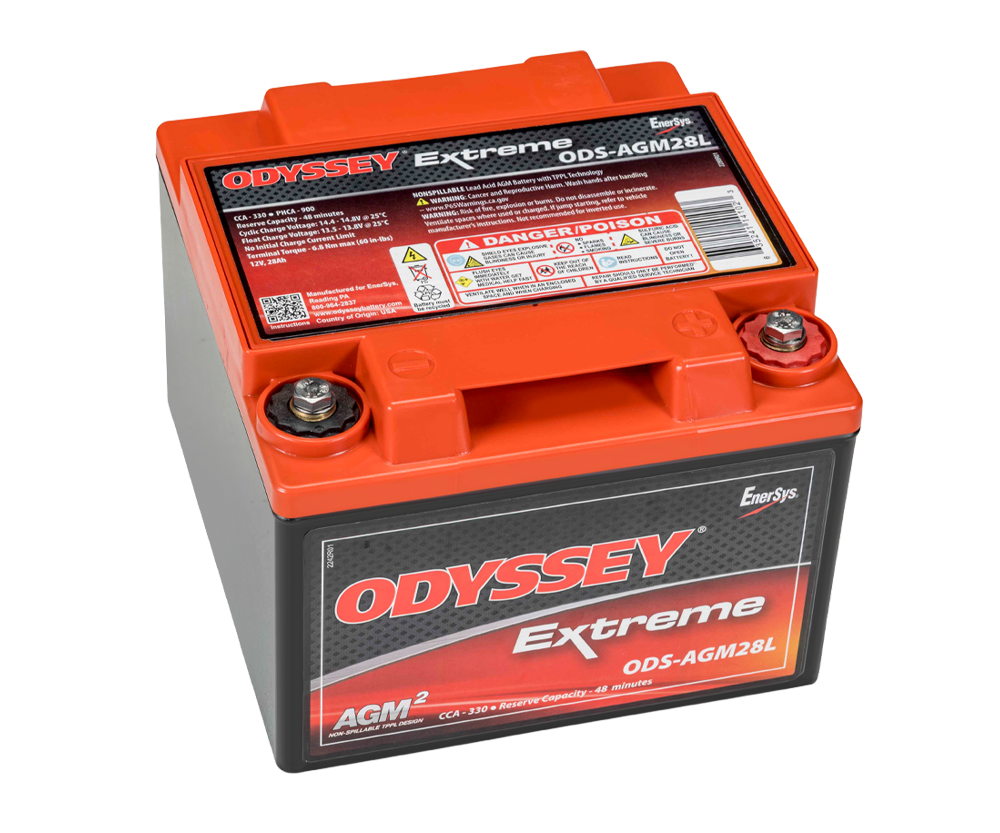

 ODS-AGM28L (PC925) |
12 | 900 | 330 | 610 | 480 | 28 | 27 | 48 | 6.6 (168) |
6.9 (175) |
4.7 (119) |
5 (127) |
23.8 (10.8) |
M6 Receptacle | 60 (6.8) | 5 | View | ||

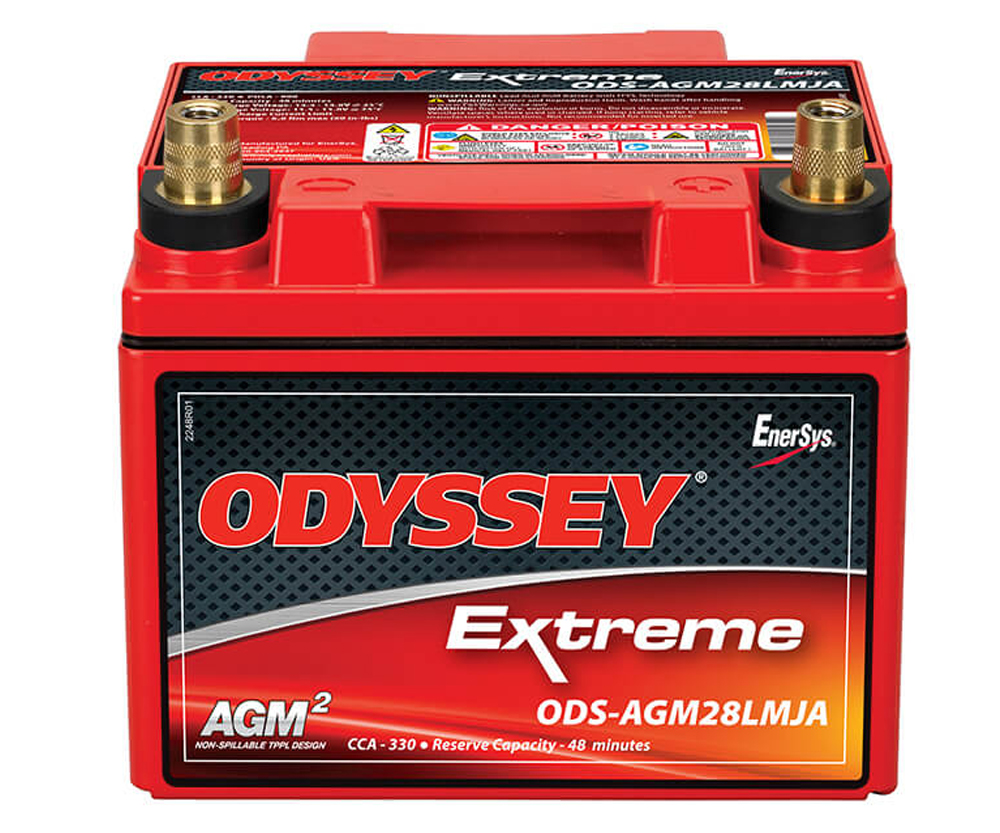

 ODS-AGM28LMJA (PC925MJT) |
12 | 900 | 330 | 610 | 480 | 28 | 27 | 48 | 6.6 (168) |
7.1 (180) |
5.8 (147) |
5 (127) |
25.3 (11.5) |
SAE | N/A | 5 | View | ||

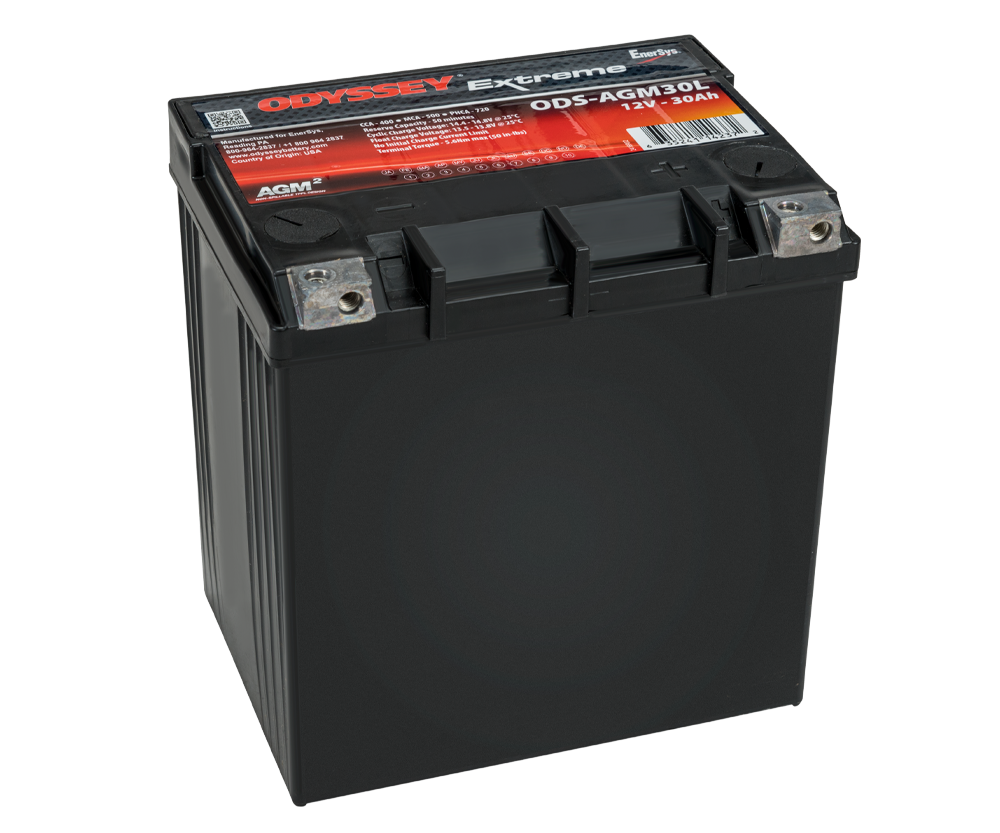

 ODS-AGM30L |
12 | 720 | 400 | 575 | 500 | 30 | 27 | 50 | 6.6 (168) |
4.9 (124) |
6.9 (175) |
6.9 (175) |
20 (9.1) |
M6 Receptacle | 50 (5.6) | View | |||

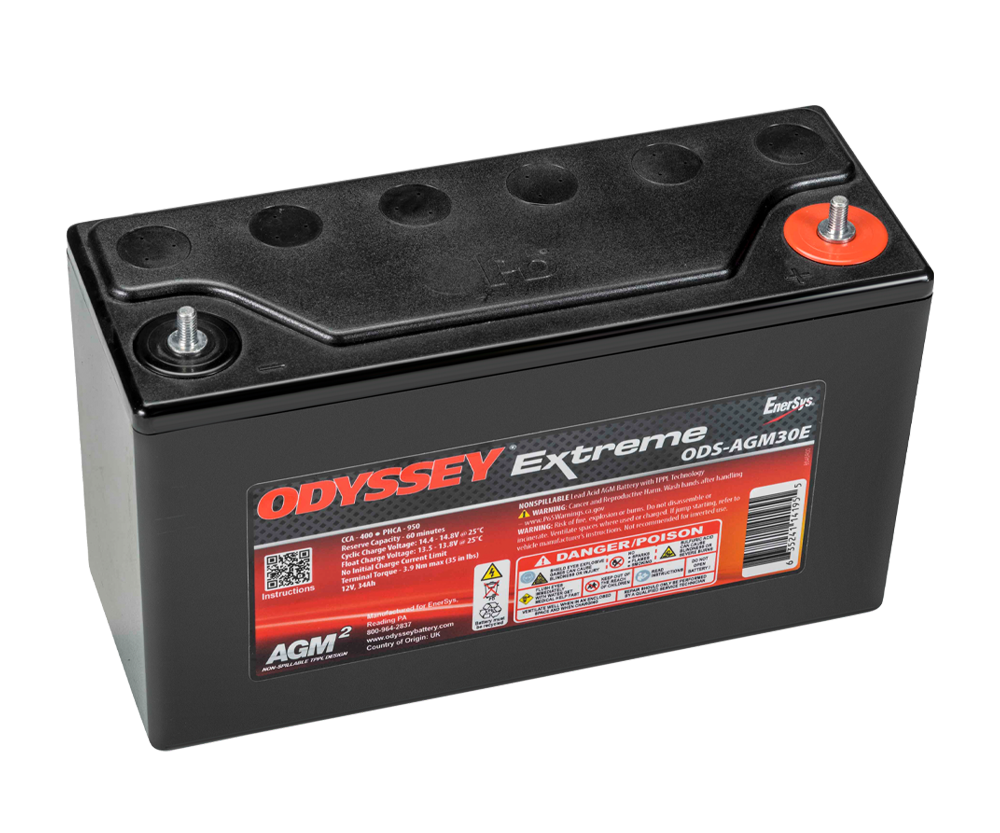

 ODS-AGM30E (PC950) |
12 | 950 | 400 | 600 | 500 | 34 | 32 | 60 | 9.8 (249) |
3.8 (97) |
6.1 (155) |
5.8 (147) |
20 (9.1) |
M6 Stud | 35 (3.9) | 7.1 | View | ||

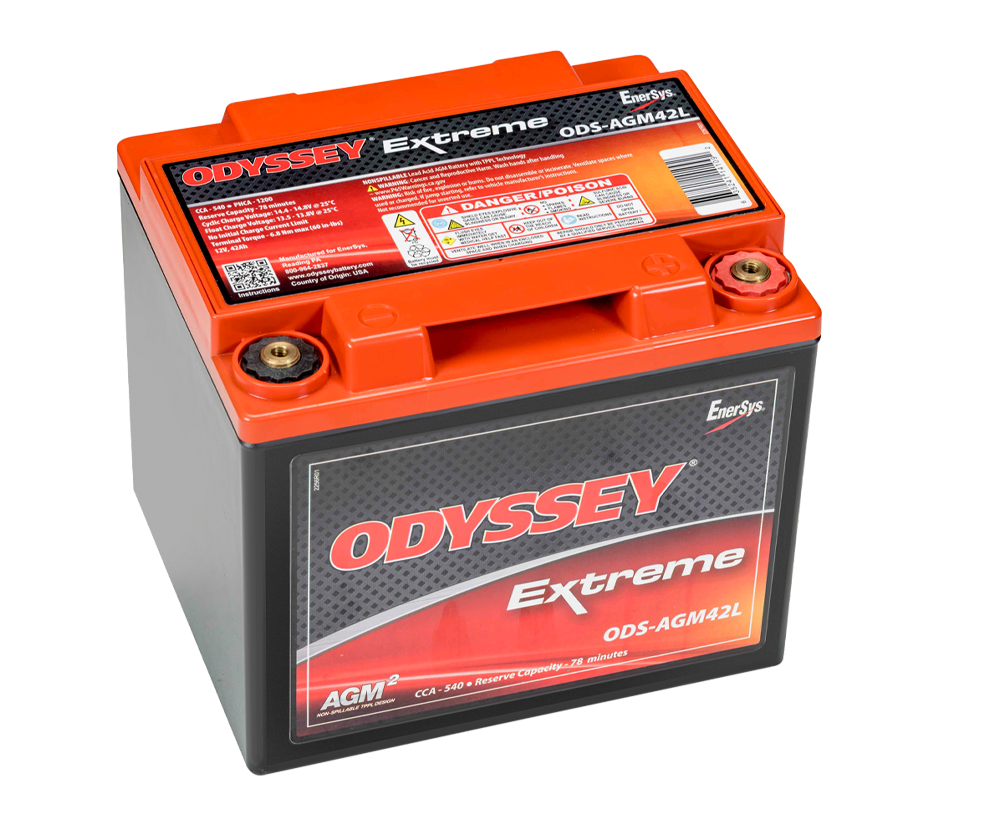

 ODS-AGM42L (PC1200) |
12 | 1200 | 540 | 860 | 725 | 42 | 40 | 78 | 7.8 (198) |
6.5 (165) |
6.4 (163) |
6.7 (170) |
38.2 (17.3) |
M6 Receptacle | 60 (6.8) | 4.5 | View | ||

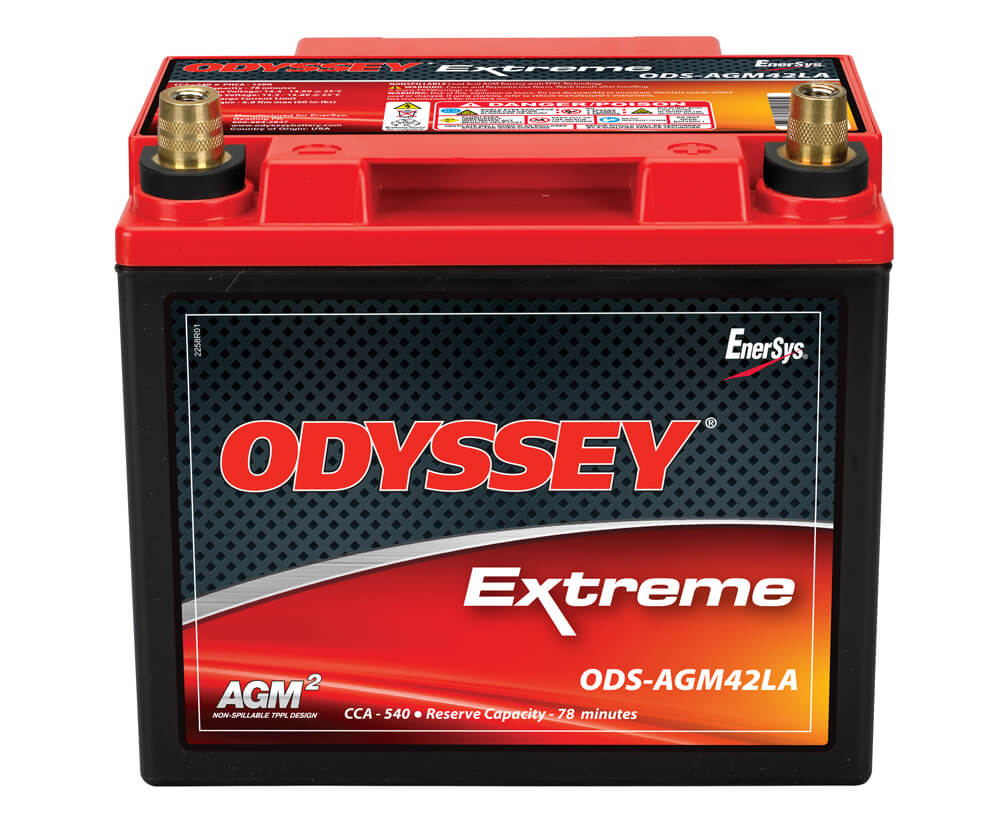

 ODS-AGM42LA (PC1200T) |
12 | 1200 | 540 | 860 | 725 | 42 | 40 | 78 | 7.8 (198) |
6.5 (165) |
7.5 (191) |
6.7 (170) |
38.2 (17.3) |
SAE | N/A | 4.5 | View | ||

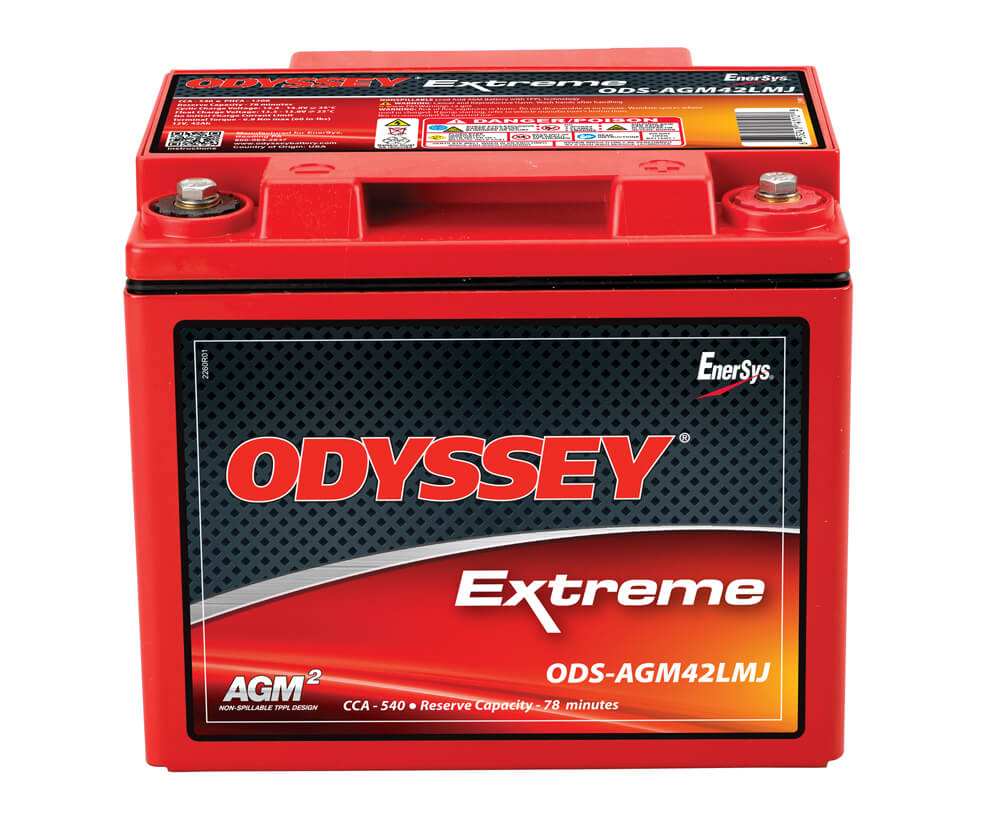

 ODS-AGM42LMJ (PC1200MJ) |
12 | 1200 | 540 | 860 | 725 | 42 | 40 | 78 | 7.9 (201) |
6.7 (170) |
6.5 (165) |
6.8 (173) |
40.5 (18.4) |
M6 Receptacle | 60 (6.8) | 4.5 | View | ||

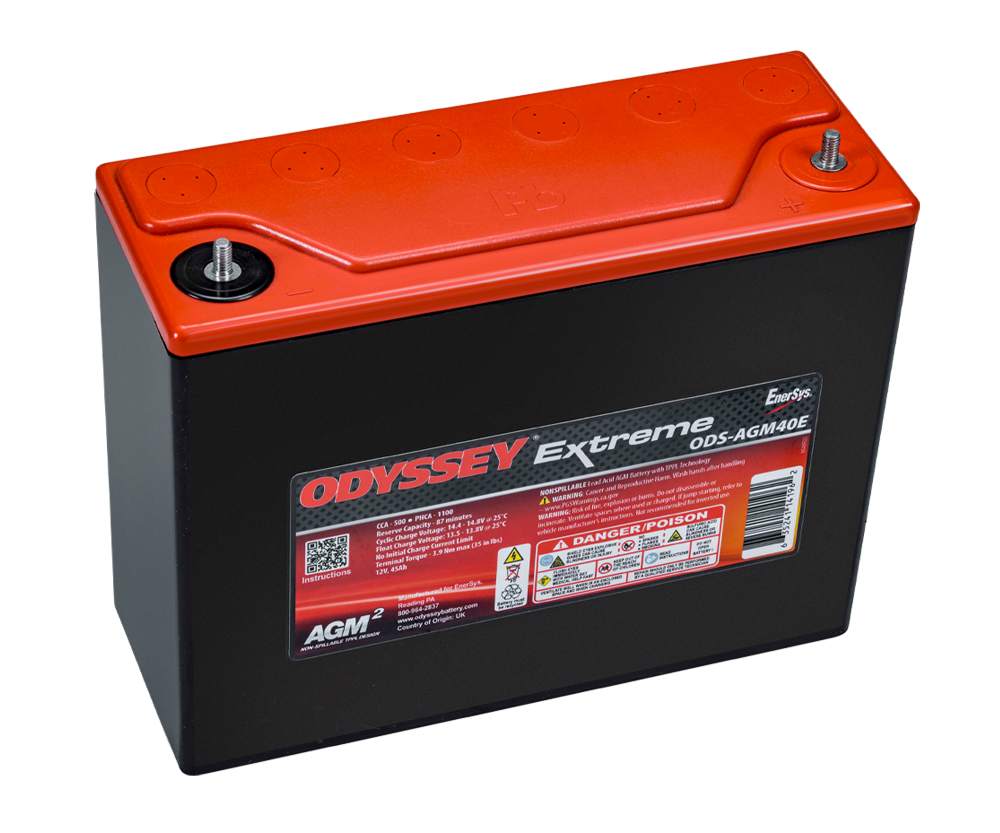

 ODS-AGM40E (PC1100) |
12 | 1100 | 500 | 800 | 650 | 45 | 43 | 87 | 9.8 (249) |
3.8 (97) |
8.1 (206) |
7.7 (196) |
27.5 (12.5) |
M6 Stud | 35 (3.9) | 5.1 | View | ||

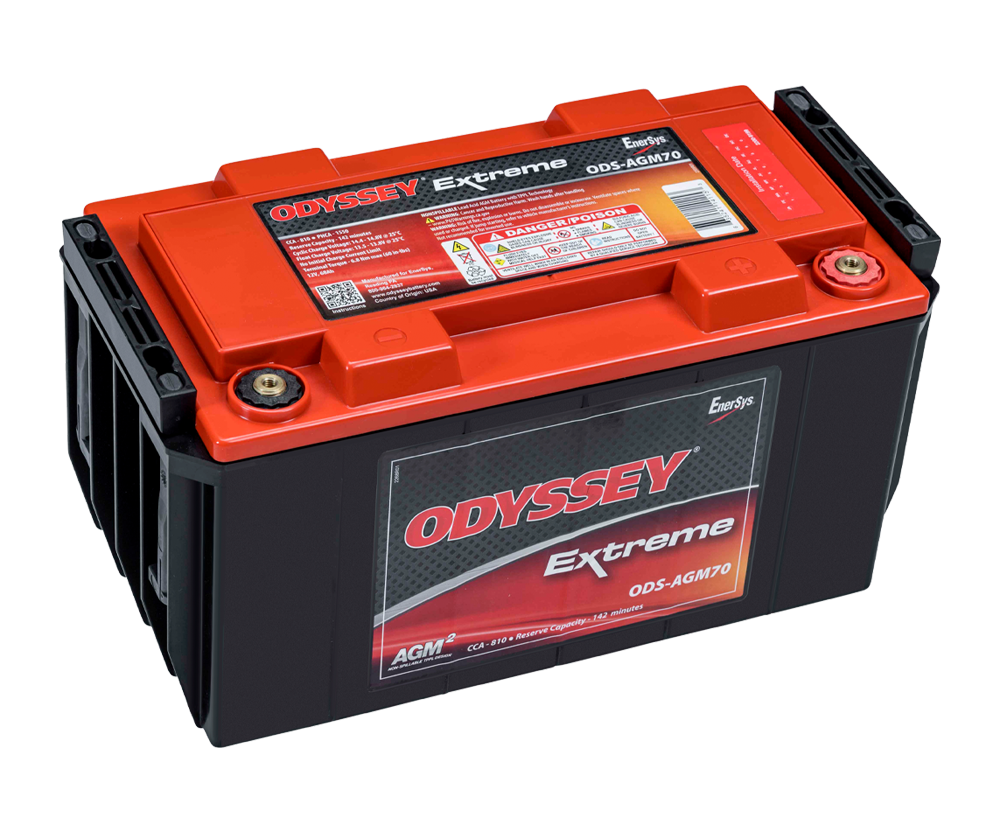

 ODS-AGM70 (PC1700) |
12 | 1550 | 810 | 1325 | 1175 | 68 | 65 | 142 | 13 (330) |
6.6 (168) |
6.6 (168) |
6.9 (175) |
60.9 (27.6) |
M6 Receptacle | 60 (6.8) | 3.5 | View | ||

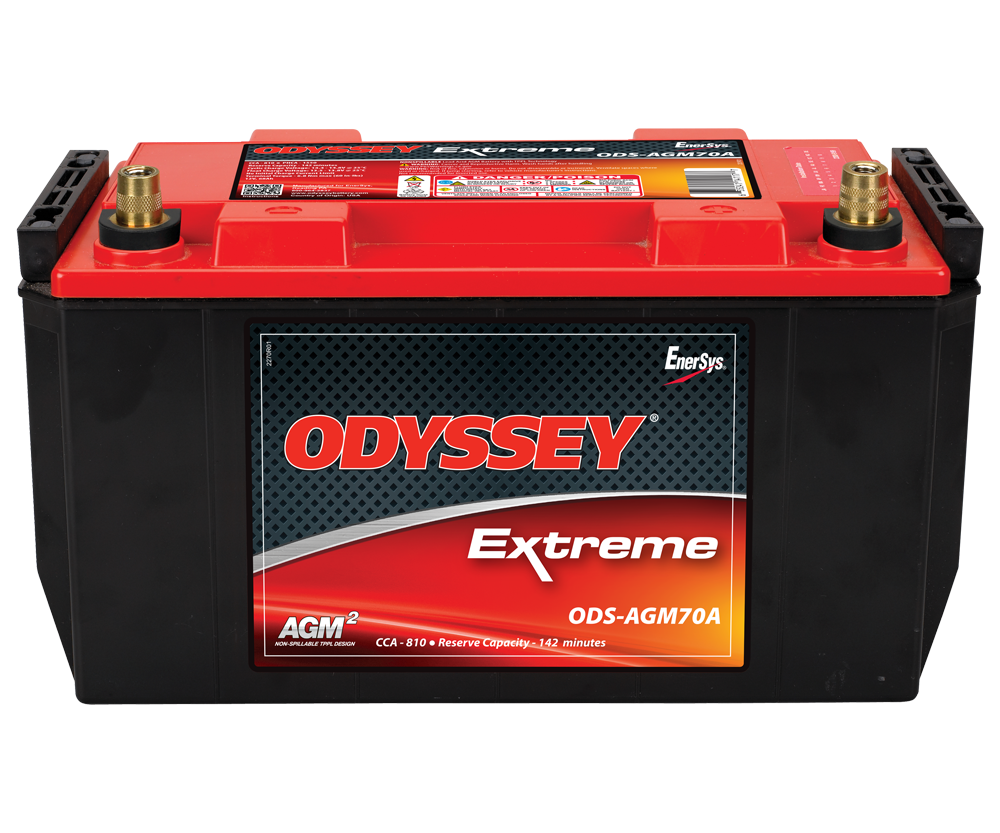

 ODS-AGM70A (PC1700T) |
12 | 1550 | 810 | 1325 | 1175 | 68 | 65 | 142 | 13 (330) |
6.6 (168) |
7.8 (198) |
6.9 (175) |
60.9 (27.6) |
SAE | N/A | 3.5 | View | ||

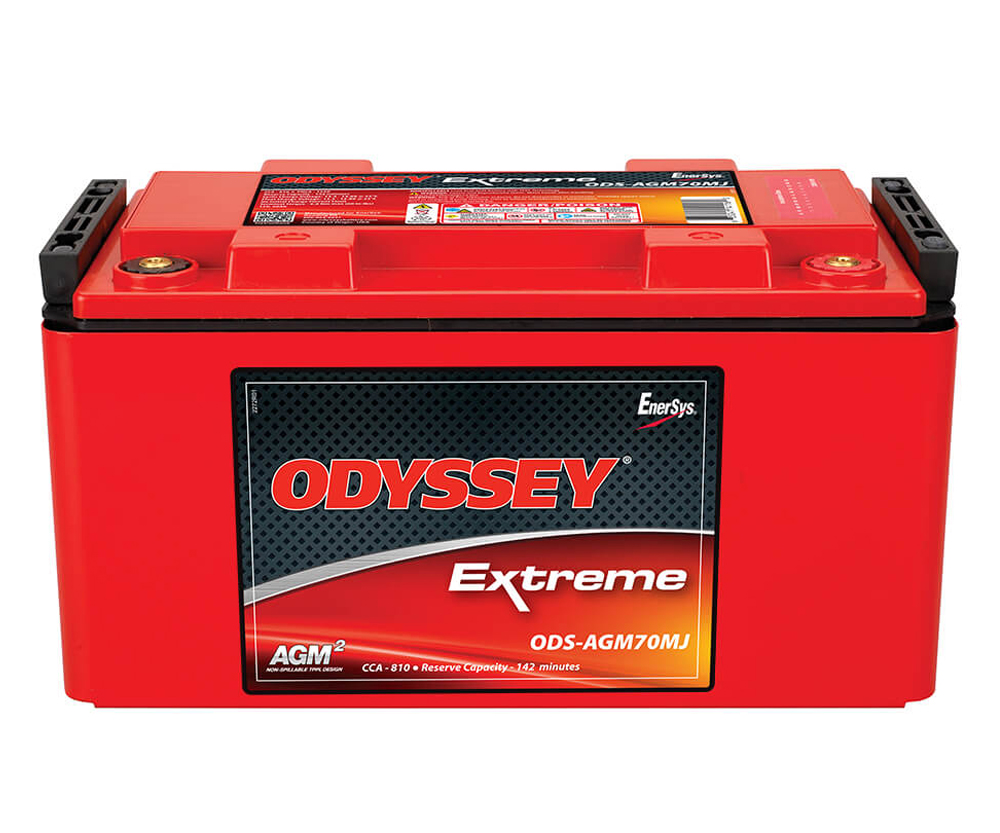

 ODS-AGM70MJ (PC1700MJ) |
12 | 1550 | 810 | 1325 | 1175 | 68 | 65 | 142 | 13 (330) |
6.6 (168) |
6.7 (170) |
7 (178) |
60.9 (27.6) |
M6 Receptacle | 60 (6.8) | 3.5 | View |

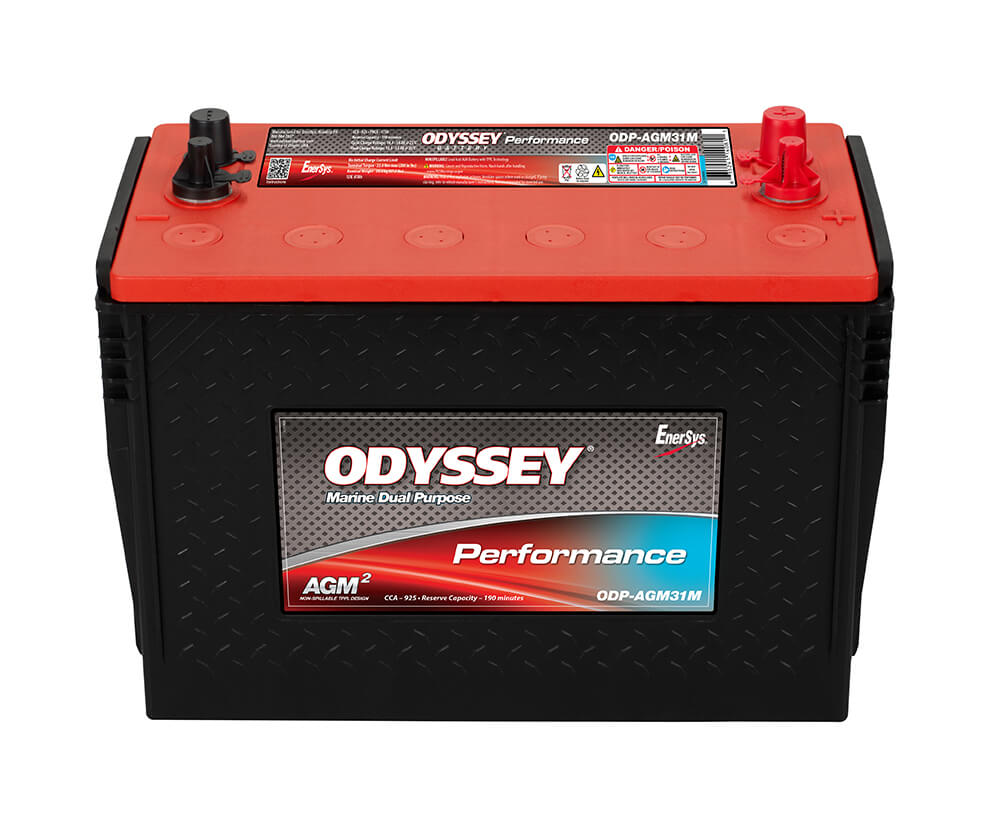

ODYSSEY® Marine Batteries
Especially designed for marine applications, although can be used in other applications where size and fitments allow.
| NEW PART NUMBER (Old Part Number) |
Voltage | PHCA** 5 sec. [A] |
MHPCA* [A] |
MPCA* [A] |
CCA* [A] |
HCA* [A] |
MCA* [A] |
20 HR Rate [Ah] |
10 HR Rate [Ah] |
Reserve Capacity [Minutes] |
Maximum Length [in (mm)] |
Maximum Width [in (mm)] |
Maximum Total Height [in (mm)] |
Maximum Container Height [in (mm)] |
Weight [lb (kg)] |
Terminal | Maximum Torque [in-lb (Nm)] |
Internal Resistance [mΩ] |
Terminal Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

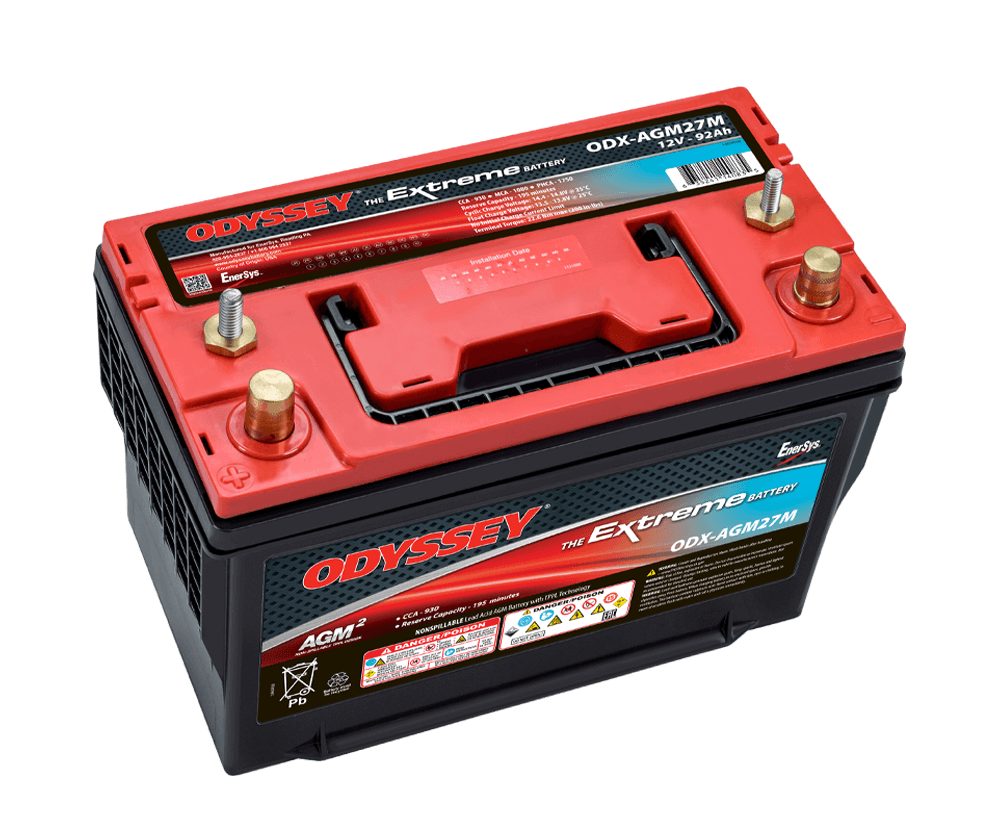

 ODX-AGM27M (NSB-AGM27M) |
12 | 1750 | 1600 | 1325 | 930 | 1290 | 1080 | 92 | 88 | 195 | 12.5 (318) |
6.8 (173) |
8.8 (224) |
8.2 (208) |
67.9 (30.8) |
SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.) | 200 (22.6)/100 (11.3) studs only | 2.6 | View |

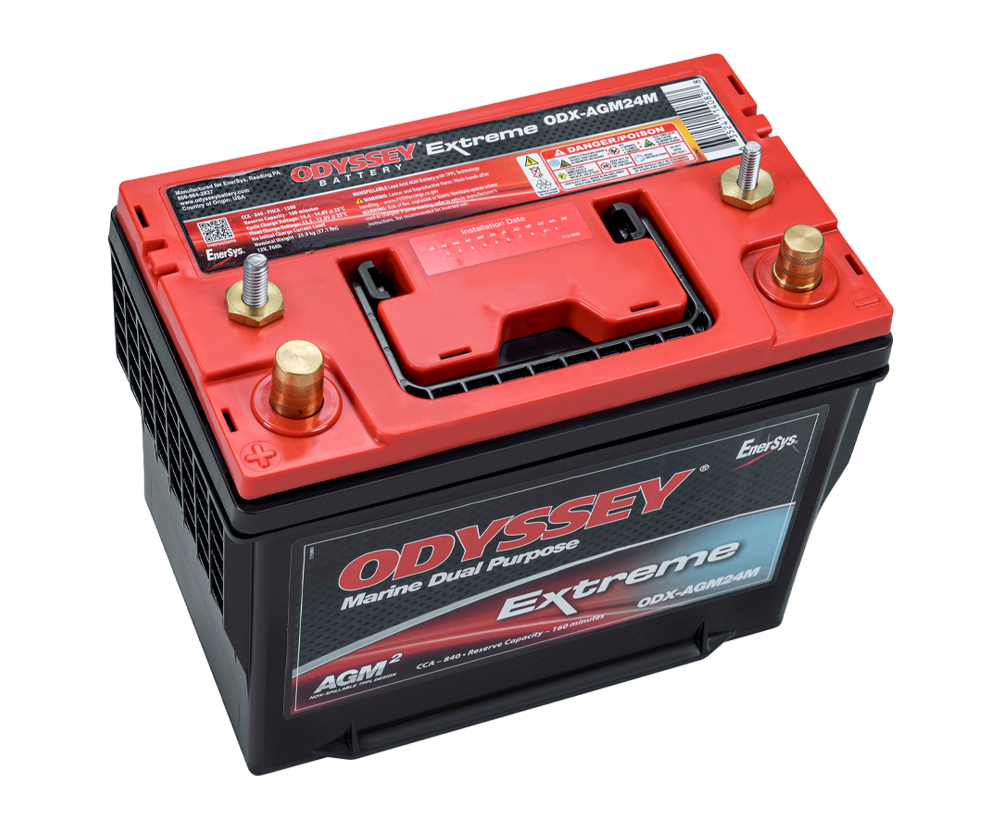

 ODX-AGM24M (NSB-AGM24M) |
12 | 1500 | 1400 | 1225 | 840 | 1200 | 1000 | 76 | 73 | 160 | 10.9 (277) |
6.8 (173) |
8.8 (224) |
8.2 (208) |
57.1 (25.9) |
SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.) | 200 (22.6)/100 (11.3) studs only | 3 | View |

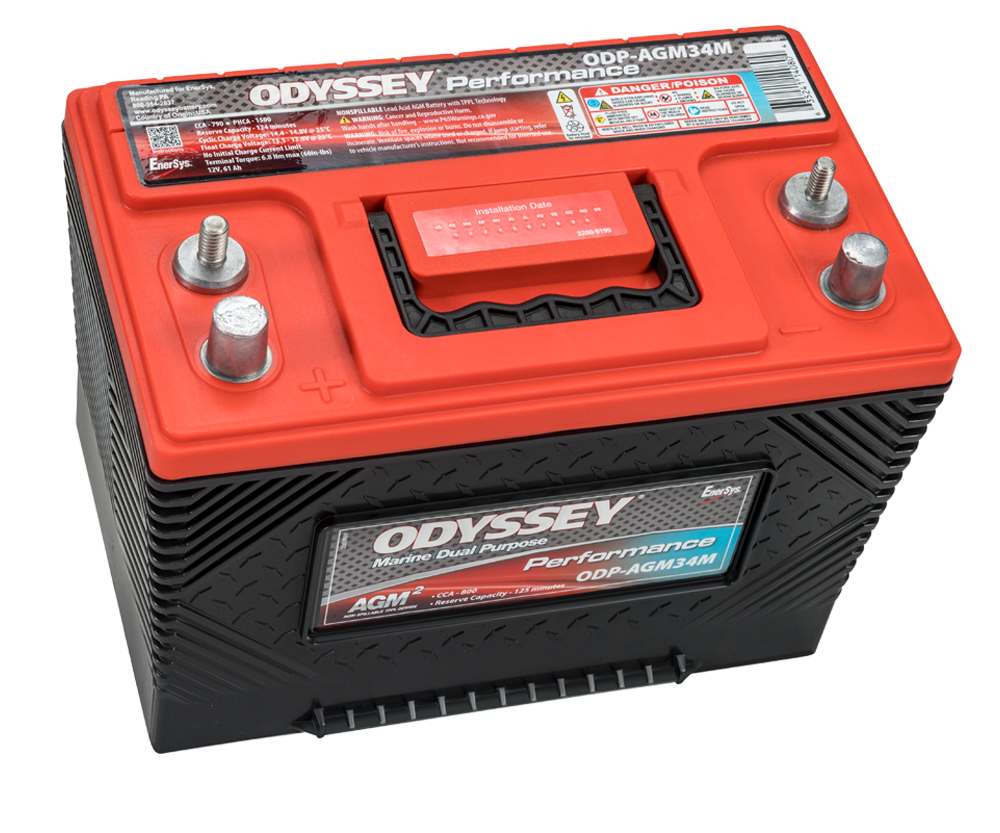

 ODP-AGM34M (34M-790) |
12 | 1500 | 1350 | 1200 | 800 | 1200 | 1000 | 65 | 58 | 130 | 10.9 (277) |
6.8 (173) |
7.8 (198) |
7.2 (183) |
46.7 (21.2) |
SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.) | 200 (22.6)/100 (11.3) studs only | 2.9 | View |

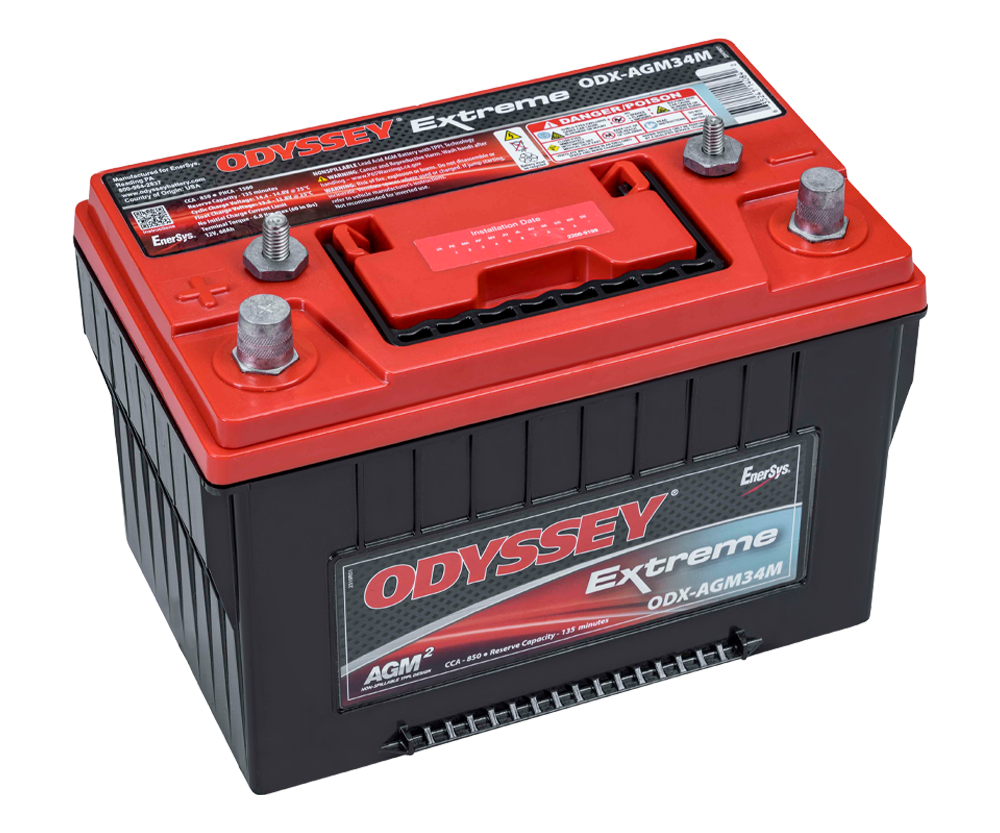

 ODX-AGM34M (34M-PC1500 or NSB-AGM34M) |
12 | 1500 | 1400 | 1275 | 850 | 1250 | 1050 | 68 | 62 | 135 | 10.9 (277) |
6.8 (173) |
7.8 (198) |
7.2 (183) |
50.9 (23.1) |
SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.) | 200 (22.6)/100 (11.3) studs only | 2.5 | View |
 ODP-AGM24M (ELT-AGM24M) |
12 | 1300 | 755 | 950 | 825 | 63 | 58 | 155 | 10.9 (277) |
6.8 (173) |
8.8 (224) |
8.2 (208) |
51.4 (23.3) |
SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.) | 200 (22.6)/100 (11.3) studs only | 4.2 | View | ||

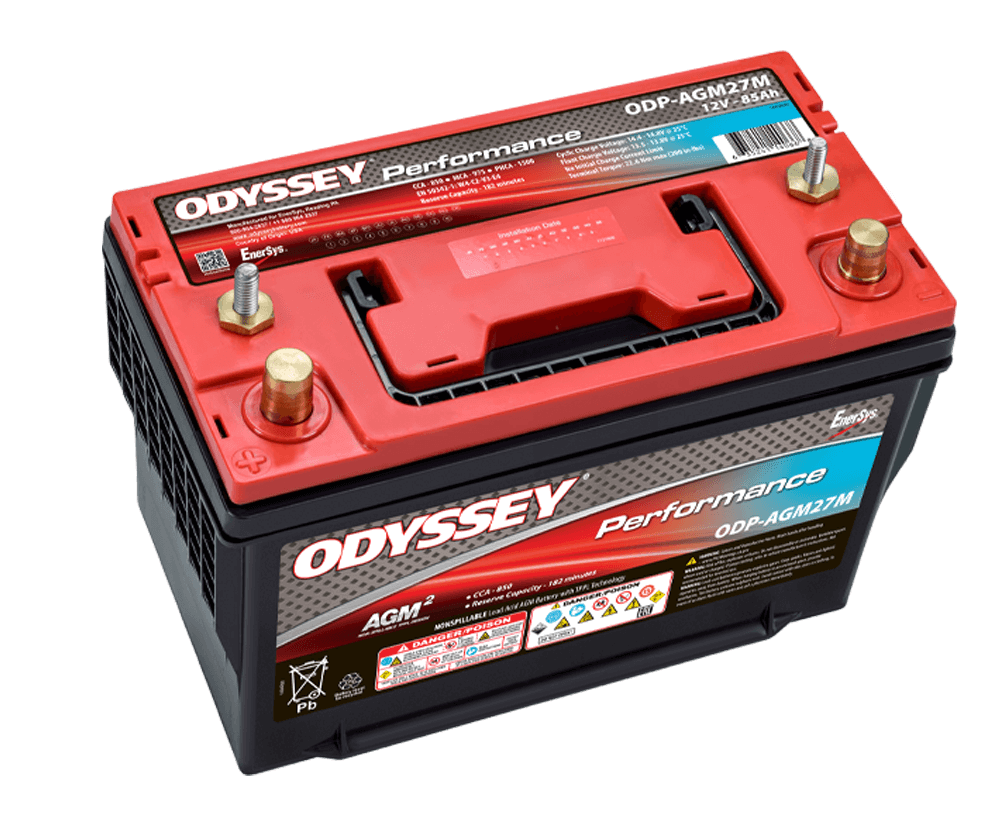

 ODP-AGM27M (ELT-AGM27M) |
12 | 1500 | 850 | 1150 | 975 | 85 | 79 | 182 | 12.5 (318) |
6.8 (173) |
8.8 (224) |
8.2 (208) |
59.7 (27.1) |
SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.) | 200 (22.6)/100 (11.3) studs only | 3.8 | View | ||
 ODP-AGM31M (31M-925) |
12 | 1750 | 1400 | 1300 | 925 | 1325 | 1150 | 100 | 92 | 200 | 13 (330) |
6.8 (173) |
10 (254) |
8.9 (226) |
69.5 (31.5) |
SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.) | 200 (22.6)/100 (11.3) studs only | 2.6 | View |

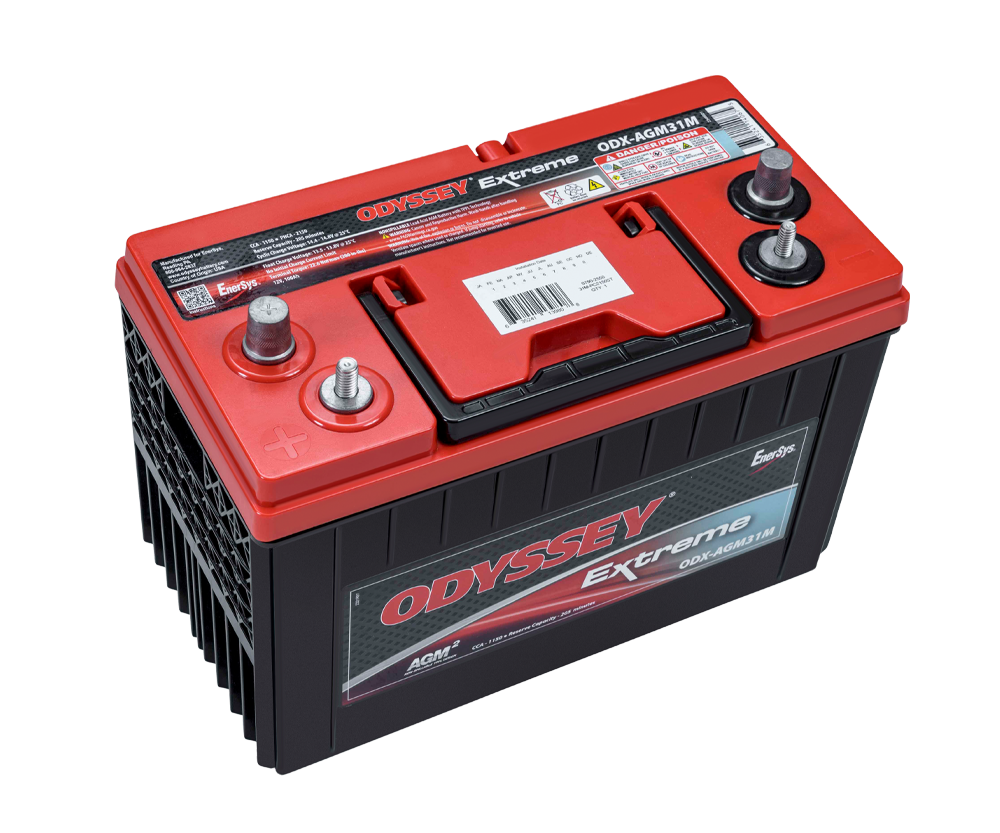

 ODX-AGM31M (31M-PC2150) |
12 | 2150 | 1950 | 1625 | 1150 | 1545 | 1370 | 103 | 98 | 220 | 13 (330) |
6.8 (173) |
9.9 (251) |
8.9 (226) |
77.8 (35.3) |
SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.) | 200 (22.6)/100 (11.3) studs only | 2.2 | View |

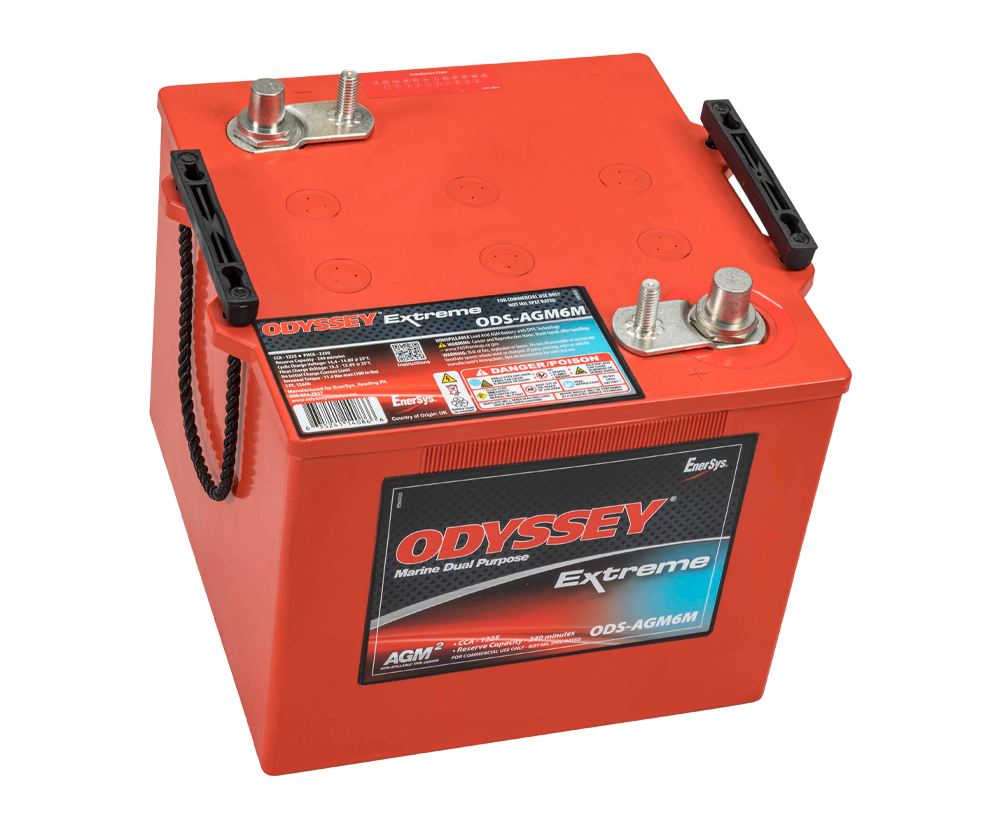

 ODS-AGM6M (PC2250) |
12 | 2250 | 1225 | 1730 | 1550 | 126 | 114 | 240 | 11.3 (287) |
10.6 (269) |
9.2 (234) |
8.2 (208) |
86 (39.0) |
SAE and 3/8-16" Stud | 100 (11) stud only | 2.1 | View | ||
|
ODP-AGMDINB (629-DIN B-1300) |
12 | 2400 | 1300 | 1747 | 1549 | 170 | 153 | 370 | 20.39 (518) |
8.78 (223) |
8.58 (218) |
8.28 (210) |
117.3 (53.2) |
SAE | 60 (6.8) | 2.0 | View | ||

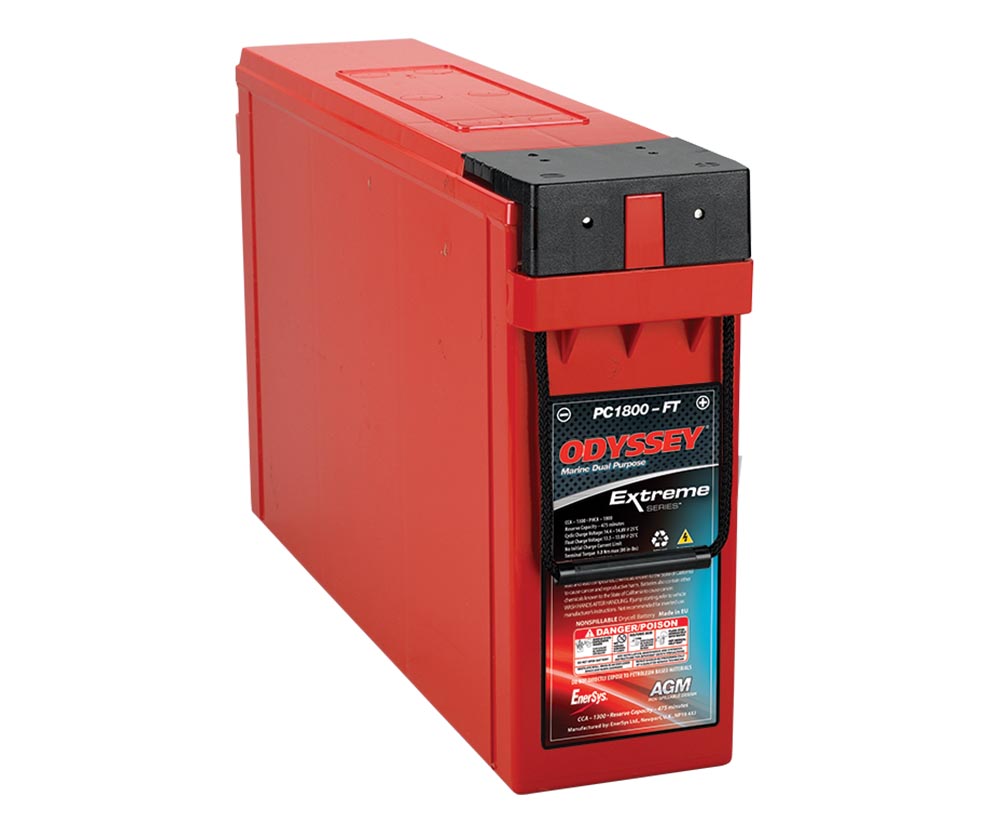

 ODS-AGM470FTT (PC1800-FT) |
12 | 1800 | 1300 | 1600 | 1450 | 214 | 190 | 475 | 22.9 (582) |
4.9 (124) |
12.5 (318) |
12.5 (318) |
132 (59.9) |
3/8-16" Stud | 80 (9.0) | 3.3 | View | ||
|
ODP-ACEDINC |
12 | 2300 | 1250 | 1750 | 1500 | 215 | 190 | 450 | 20.4 (518) |
10.8 (274) |
9.5 (241) |
() |
143 (64.9) |
SAE | - | 2.7 | |||
|
ODP-AGMDINC |
12 | 2300 | 1250 | 1750 | 1500 | 215 | 190 | 450 | 20.4 (518) |
10.8 (274) |
9.5 (241) |
8.5 (216) |
143 (64.9) |
SAE | 2.7 |
- *Cold Start Performance S.A.E J537 Apr 2016
- **Pulse Current
